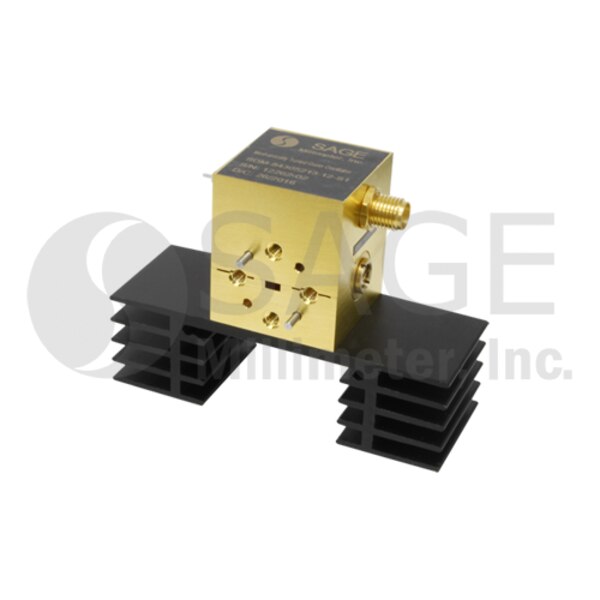

W-Band Mechanically Tuned Gunn Oscillator

110 GHz, ±0.5 GHz Tuning Bandwidth, +10 dBm Output Power, WR-10 Waveguide
SKU:SOM-11401310-10-S1
Availability:3 to 6 Weeks ARO
SOM-1141310-10-S1 is a W-band, mechanically tuned Gunn oscillator that utilizes a high performance InP Gunn diode and proprietary cavity design to deliver +10 dBm typical power. The oscillator features a frequency tuning range of 109.5 to 110.5 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator’s frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency110 GHz
Output Power+10 dBm
Mechanical Tuning Range±0.5 GHz
Bias Tuning Range±100 MHz
Bias+10.0 VDC/250 mA
RF PortWR-10 Waveguide
Mechanical TuningSelf-Locking Set Screw
