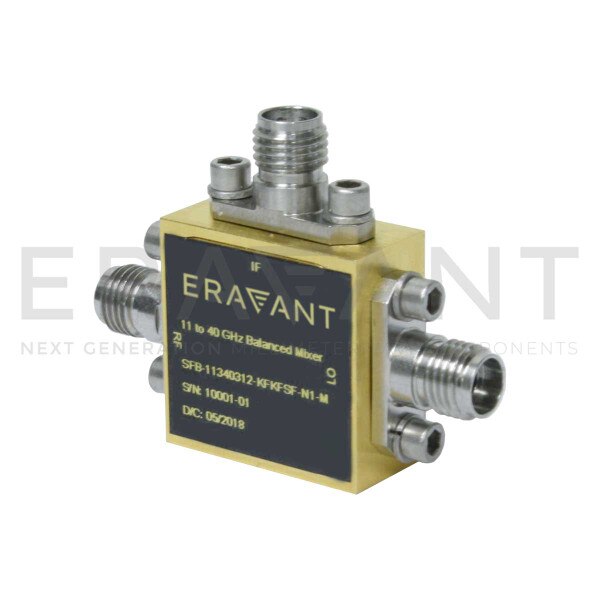

Wideband Balanced Mixer

11 to 40 GHz, DC to 10 GHz IF, +15 dBm LO Power, 2.92 mm (F)
SKU:SFB-11340312-KFKFSF-N1-M
Availability:1 Week ARO
SFB-11340312-KFKFSF-N1-M is a balanced mixer that utilizes a high performance pHEMT-based MMIC chip and a balanced circuit configuration to offer superior RF performance. The mixer supports the wide waveguide band operation from 11 to 40 GHz for both LO and RF ports. The mixer also supports a broad IF output from DC to 10 GHz. The mixer offers a typical conversion loss of 12 dB when the LO port is pumped at +15 dBm. The mixer is ideal for high linearity digital communication links.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,850.00
5 - 9$1,665.00
10 +$1,498.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum RF Frequency11 GHz
Maximum RF Frequency40 GHz
Minimum LO Frequency11 GHz
Maximum LO Frequency40 GHz
Minimum IF FrequencyDC
Maximum IF Frequency10 GHz
LO Pumping Power+15 dBm
RF Port2.92 mm (F)
