SMA Coaxial Bandpass Filter

11.4 to 13.4 GHz, 60 dB Rejection
SKU:SCF-12302360-SFSF-B3
Availability:3 Days ARO

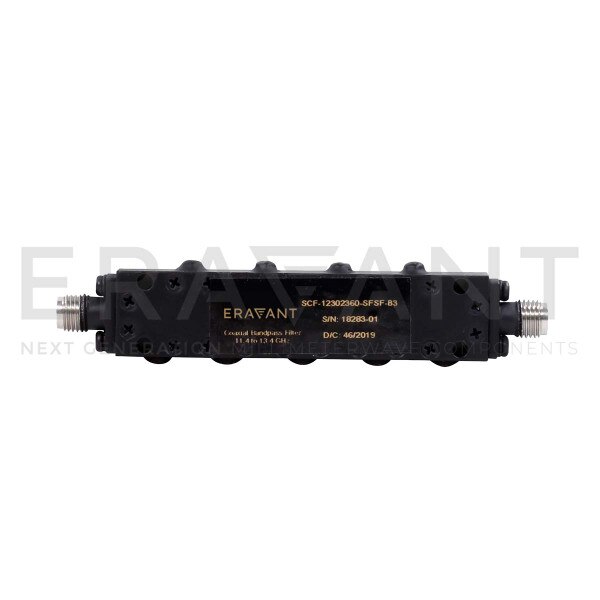

SCF-12302360-SFSF-B3 is a coaxial bandpass filter with a passband frequency of 11.4 to 13.4 GHz. The typical insertion loss of the bandpass filter is 0.6 dB and the passband ripple is ±0.3 dB. The rejection frequencies are 10.4 GHz or less and 14.5 GHz or higher. The typical rejection is 60 dB and the typical passband return loss of the filter is 14 dB. The RF connectors of the the filter are SMA Female connectors. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$760.00
10 - 24$684.00
25 - 49$615.60

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency11.4 GHz
Maximum Passband Frequency13.4 GHz
Low Side Rejection60 dB
High Side Rejection60 dB
Return Loss14 dB
Insertion Loss0.6 dB
Impedance50 Ohms
RF PortsSMA (F)
