W-Band Junction Circulator

104 to 111 GHz, 18 dB Isolation, WR-10 Waveguide
SKU:SNW-1041141018-10-C1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

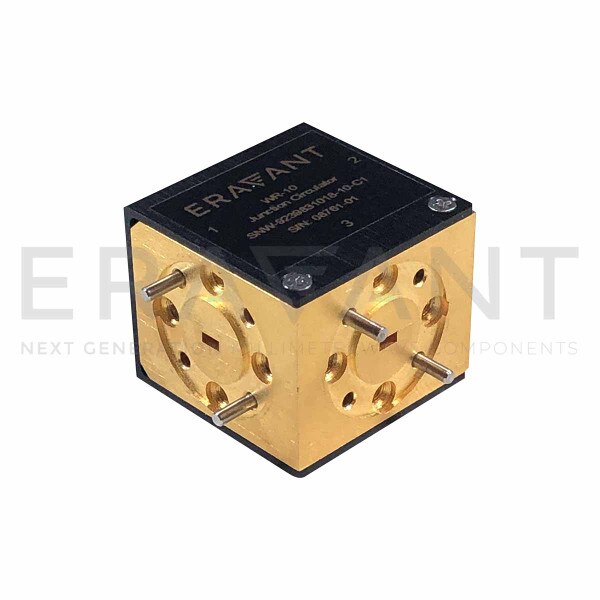

SNW-1041141018-10-C1 is a W band waveguide junction circulator that covers the frequency range of 104 to 111 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 1 dB nominal, a typical isolation of 18 dB, and a much shorter insertion length for system integration. The RF ports are WR-10 waveguides with UG-387/U-M anti-cocking flange. The higher port isolation version is offered under the model number of SNW-1041141535-10-CM, with port isolation up to 35 dB.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,100.00
5 - 9 $990.00
10 - 24 $891.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency104 GHz
Maximum Frequency111 GHz
Insertion Loss1.0 dB
Isolation18 dB
Return Loss16 dB
Forward Power Handling3 W (CW)
Reverse Power Handling3 W (CW)
RF PortWR-10 Waveguide
Device TypeCirculator
