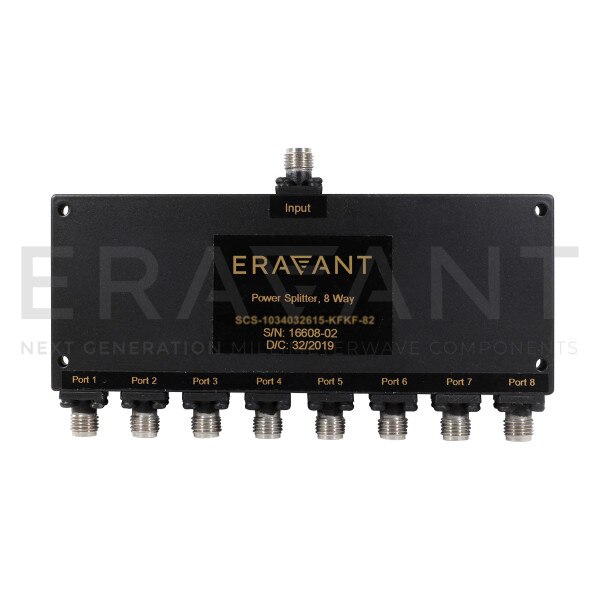

8-Way Coaxial Power Splitter

10 to 40 GHz, 2.92 mm (F)
SKU:SCS-1034032615-KFKF-82
Availability:4 to 6 Weeks ARO
SCS-1034032615-KFKF-82 is a coaxial 8-way power splitter with a typical insertion loss of 2.3 dB at each output port and a typical isolation of 15 dB across the frequency range of 10 to 40 GHz. The power splitter has a nominal power handling of 30 W (CW) and a typical amplitude unbalance of ±0.6 dB. The return loss for all ports is 10 dB typical. The RF connectors of the power splitter are female 2.92 mm (K) connectors.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,950.00
5 - 9$1,755.00
10 - 24$1,579.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency10 GHz
Maximum Frequency40 GHz
Ways8
Insertion Loss2.3 dB
Port Isolation15 dB
Return Loss10 dB
Impedance50 Ohms
RF ConnectorsK (F)
