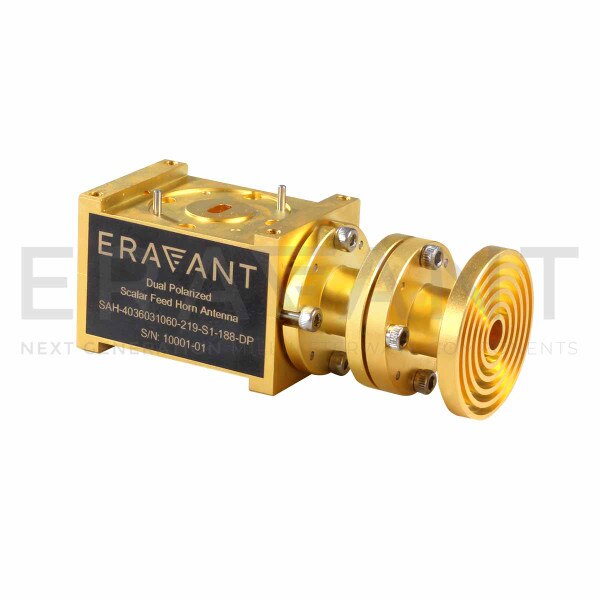

WR-19 Dual-Polarized Choke Flange Feed Horn Antenna
10 dBi Gain, 40 to 60 GHz, 40 dB Isolation, U-Band
Bulk Pricing
Login to view pricing
Technical Details
| Minimum Frequency | 40 GHz |
| Maximum Frequency | 60 GHz |
| Gain | 10 dBi |
| 3 dB Beamwidth, E-plane | 60° |
| 3 dB Beamwidth, H-plane | 60° |
| Isolation | 40 dB |
| Return Loss | 15 dB |
| Horizontal and Vertical Ports | WR-19 Waveguide |
