Broadband Double-Ridged Horn

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-DR.
A 2D pattern measurement test is offered under service number FTA-0400PATT-DR.

CLICK HERE to read more about our antenna measurement capabilities.

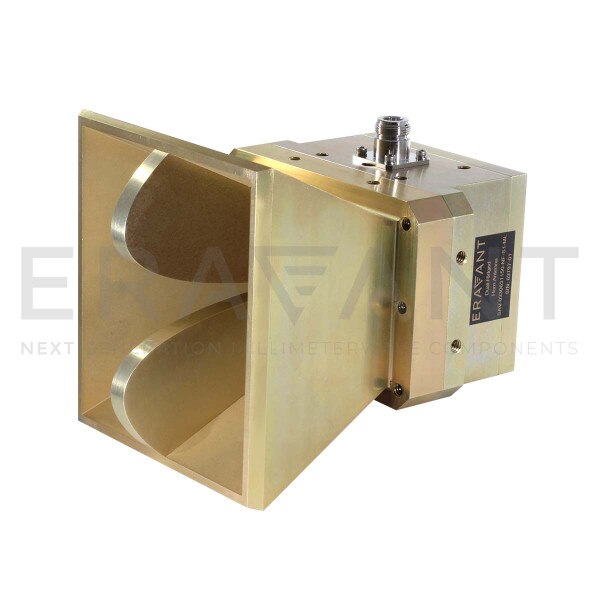

SAV-0330631050-NF-S1 is a dual ridged horn antenna that operates from 3 GHz to 6 GHz. The antenna offers 10 dBi nominal gain and a typical 3 dB beamwidth of 50 degrees on the E-plane and the H-plane. The antenna supports linear polarized waveforms. The antenna features multiple 1/4-20 threaded holes on the sides for flexible mounting capability. The RF port is equipped with an female N-type connector
