WR-28 Dual-Polarized Choke Flange Feed Horn Antenna

10 dBi Gain, 24 to 42 GHz, 35 dB Isolation, Ka-Band
SKU:SAH-2434231060-328-S1-280-DP
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0500GAIN-AA-DP.
A 2D pattern measurement test is offered under service number FTA-0500PATT-AA-DP.

CLICK HERE to read more about our antenna measurement capabilities.

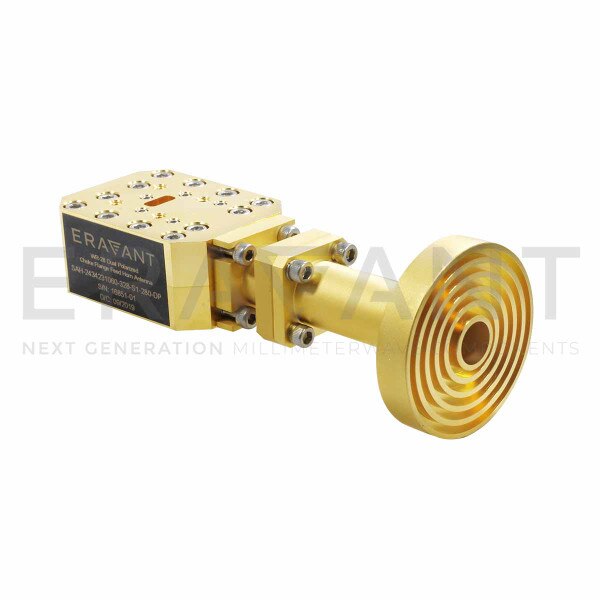

SAH-2434231060-328-S1-280-DP is a dual polarized, WR-28 choke flange feed horn antenna assembly that covers several popular 5G bands in the frequency range of 24 to 42 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation and a broad band scalar horn that provides low sidelobe levels. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms. At center frequency, the horn antenna exhibits 10 dBi nominal gain and a typical half power beamwidth of 60 degrees and -25 dB sidelobe level for E plane and -35 dB for H Plane. The antenna exhibits 35 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-28 waveguides with UG-599/U flanges and 4-40 threaded holes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency42 GHz
Gain10 dBi
3 dB Beamwidth, E-plane60°
3 dB Beamwidth, H-plane60°
Isolation35 dB
Return Loss15 dB
Horizontal and Vertical PortsWR-28 Waveguide
