V-Band Choke Flange Feed Horn Antenna

10 dBi Gain, 0.165" Diameter Circular Waveguide
SKU:SAH-5037531060-165-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

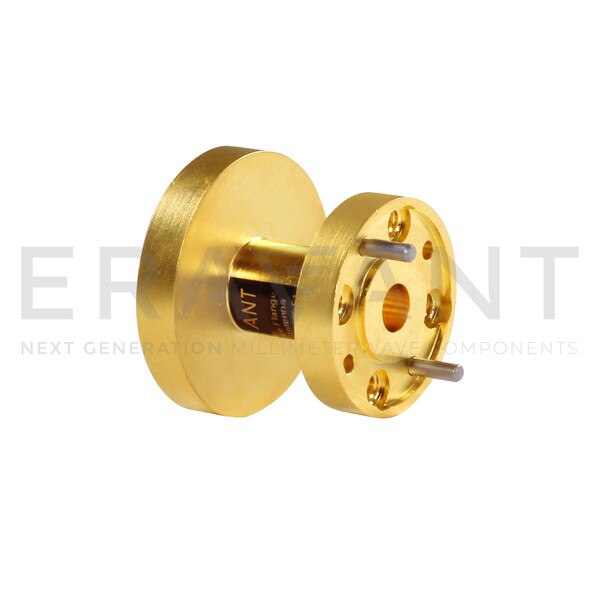

Model SAH-5037531060-165-S1 is a V-band choke flange feed horn antenna that operates from 50 to 75 GHz. The antenna offers a nominal gain of 10 dBi, typical half power beamwidth in E and H plane of 60 degrees and typical side lobe levels of -30 dB for both E and H plane. The antenna port is a 0.165” diameter circular waveguide with a UG-385/U-M anti-cocking flange that supports both linear and circular polarized waveforms. A dual polarized configuration with an integrated orthomode transducer is available under the model SAF-5037531060-165-S1-148-DP.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,350.00
5 - 9 $1,215.00
10 - 24 $1,093.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain10 dBi
3 dB Beamwidth, E-Plane60°
3 dB Beamwidth, H-Plane60°
Return Loss20 dB
Antenna Port0.165" Diameter Circular Waveguide
