Coaxial Directional Coupler

10 dB Coupling, 6 to 50 GHz, 2.4 mm (F), 20 Watts
Availability:IN STOCKPlease contact us if you need more units than what is available online.

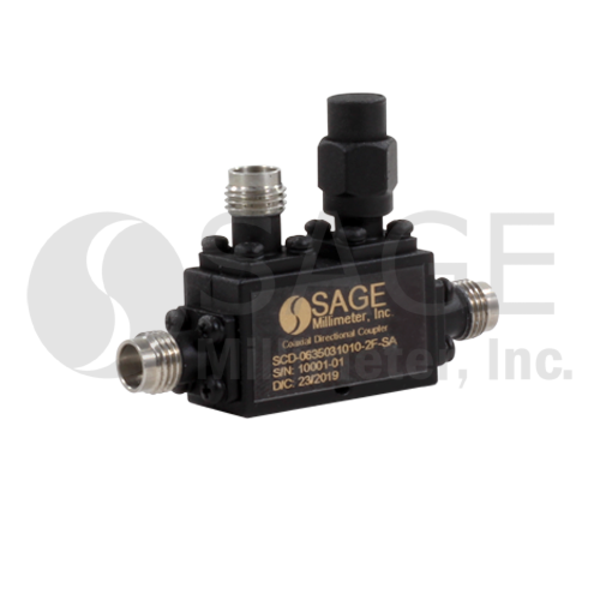

SCD-0635031010-2F-SA is a 10 dB coaxial directional coupler that covers the frequency range of 6 to 50 GHz. The nominal insertion loss of the coupler is 1.8 dB and the coupling ripple is ± 1.0 dB. The directivity of the coupler is 10 dB. The RF connectors of the coupler are 2.4mm female connectors. The power handling of the coupler is 20 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,400.00
5 - 9 $2,160.00
10 - 24 $1,944.00

Bulk Availability

1 - 6In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency6 GHz
Maximum Frequency50 GHz
Insertion Loss1.8 dB
Coupling10 dB
Power Handling20 Watts
Directivity10 dB
Port Return Loss10 dB
Impedance50 Ohms
RF Ports2.4 mm Female
