Coaxial Directional Coupler

10 dB Coupling, 1 to 40 GHz, 2.92 mm (F), 50 Watts
SKU:SCD-0134031010-KF-SA
Availability:IN STOCKPlease contact us if you need more units than what is available online.

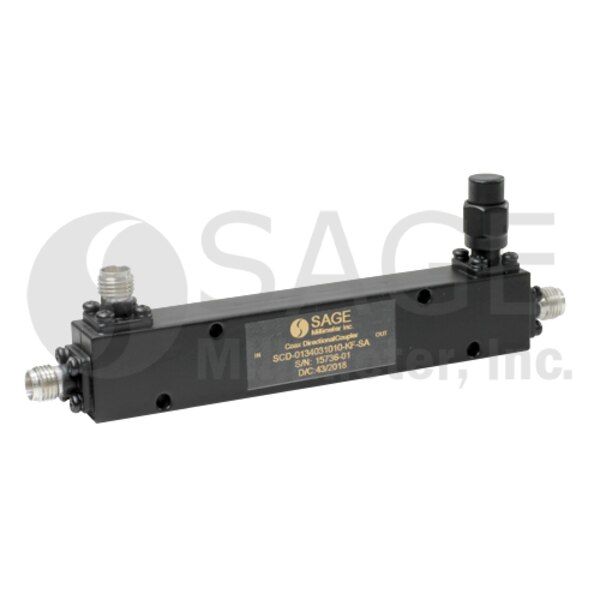

SCD-0134031010-KF-SA is a 10 dB coaxial directional coupler that covers the frequency range of 1 to 40 GHz. The nominal insertion loss of the coupler is 1.8 dB and coupling ripple is ±1.0 dB. The directivity of the coupler is 10 dB. The RF connectors of the coupler are K (F) connectors. The power handling of the coupler is 50 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$930.00
10 - 24$837.00
25 +$753.30

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency1 GHz
Maximum Frequency40 GHz
Insertion Loss1.8 dB
Coupling10 dB
Power Handling50 Watts
Directivity10 dB
Port Return Loss12 dB
Impedance50 Ohms
RF Port2.92 mm Female
