X-Band Mechanically Tuned Gunn Oscillator, Limited Run

10.525 GHz, ±0.25 GHz Tuning Bandwidth, +12 dBm Output Power, WR-90 Waveguide
SKU:SOM-11305210-90-S1
Availability:1 to 2 Weeks ARO
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should contact us for an alternative model. Read more about Limited Run Products here.

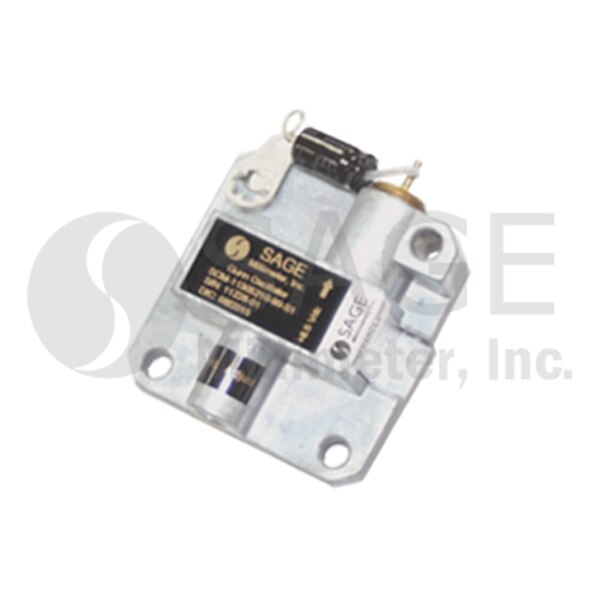

SOM-11305210-90-S1 is an X-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +12 dBm typical power. The oscillator features a frequency tuning range of 10.275 to 10.775 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $850.00
10 - 24 $765.00
25 - 49 $688.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency10.525 GHz
Output Power+12 dBm
Mechanical Tuning Range±250 MHz
Bias Tuning Range-
Bias+8.5 VDC/100 mA
RF PortWR-90 Waveguide
Mechanical TuningSelf-Locking Set Screw
