180 Degree Coaxial Hybrid Coupler

1 to 18 GHz, SMA (F) Input/Output Ports, 3 dB Coupling
Availability:IN STOCKPlease contact us if you need more units than what is available online.

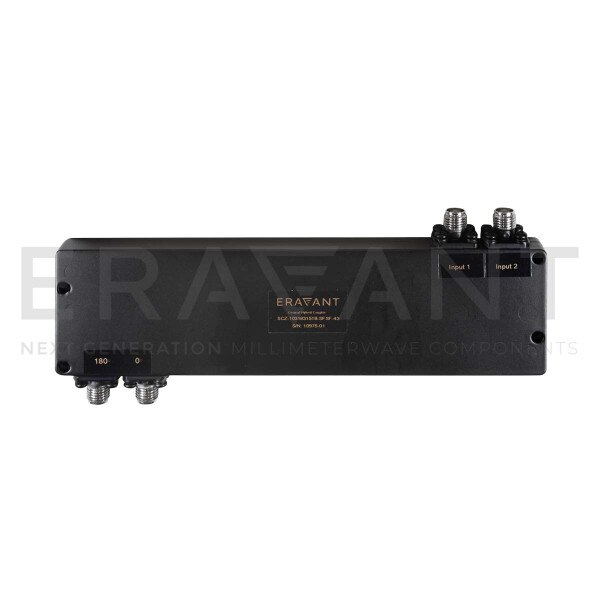

SCZ-0131831518-SFSF-43 is a coaxial 180-degree hybrid coupler that covers the frequency range of 1 to 18 GHz. The nominal coupling is 3 dB and the typical insertion loss is 2.6 dB. The typical isolation of the coupler is 15 dB. The RF connectors of the coupler are female SMA connectors. The power handling of the coupler is 50 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency1 GHz
Maximum Frequency18 GHz
Insertion Loss2.6 dB
Coupling3 dB
Return Loss14 dB
Impedance50 Ohms
RF PortsSMA (F)
