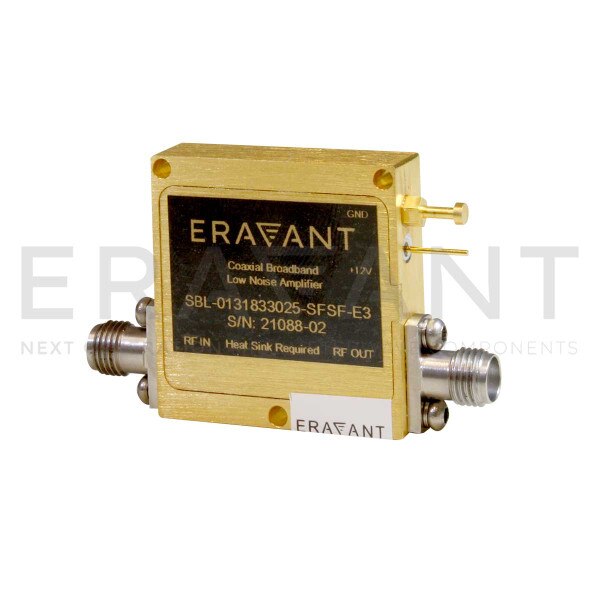

Broadband Low Noise Amplifier

1 to 18 GHz, 30 dB Gain, 2.5 dB Noise Figure, SMA (F)
SKU:SBL-0131833025-SFSF-E3
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SBL-0131833025-SFSF-E3 is a broad band low noise amplifier with a typical small signal gain of 30 dB and a nominal noise figure of 2.5 dB across the frequency range of 1 to 18 GHz. The DC power requirement for the board band low noise amplifier is +12 VDC/250 mA. The input and output port configurations are both female SMA connectors. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency1 GHz
Maximum Frequency18 GHz
Gain30 dB
Noise Figure2.5 dB
P1dB+20 dBm
Input Return Loss13 dB
Output Return Loss13 dB
DC Bias+12 VDC/250 mA
RF Input/OutputSMA (F)
