Vector Network Analyzer Coaxial Calibration Kit

1.85 mm, DC to 67 GHz
SKU:STQ-TO-VFVM-U3-CKIT1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

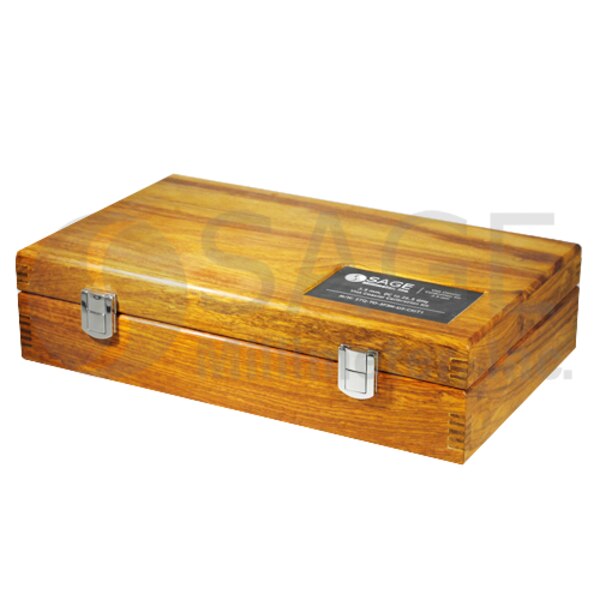

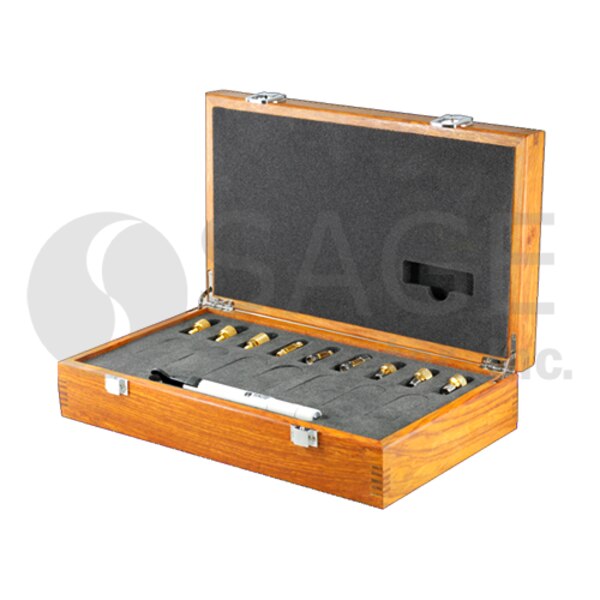

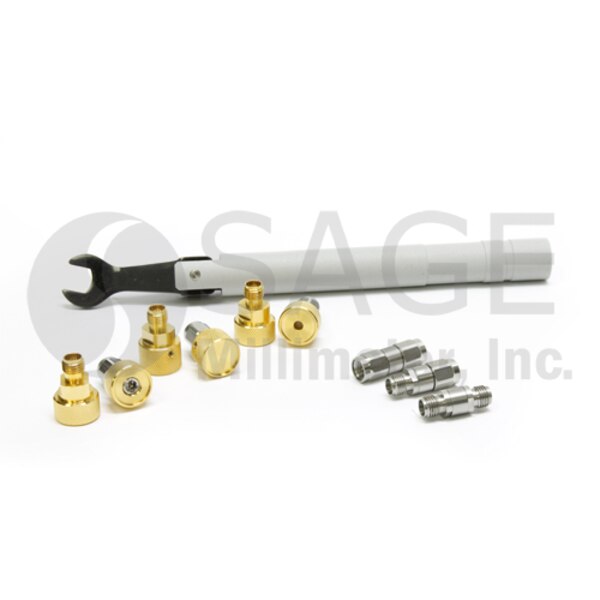

STQ-TO-VFVM-U3-CKIT1 is a 1.85 mm coaxial vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of DC to 67 GHz. The calibration kit consists of 1.85 mm male and female opens, shorts, matching loads, 1.85 mm male to male, male to female, and female to female adapters, and a 5/16" Hex Torque wrench. It is collected in a wooden box and is an ideal higher performance metrology grade calibration set for VNA system calibrations.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 $7,500.00
2 $7,125.00
3 - 4$6,768.75

Bulk Pricing

Login to View Pricing

Technical Details

Frequency RangeDC to 67 GHz
Type1.85 mm

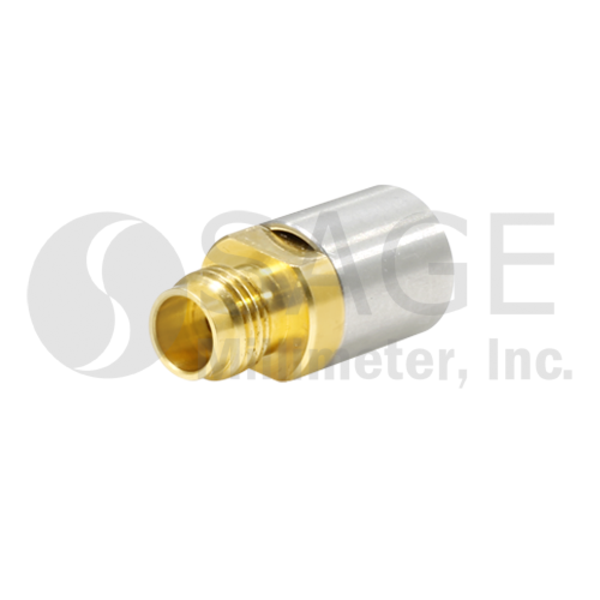

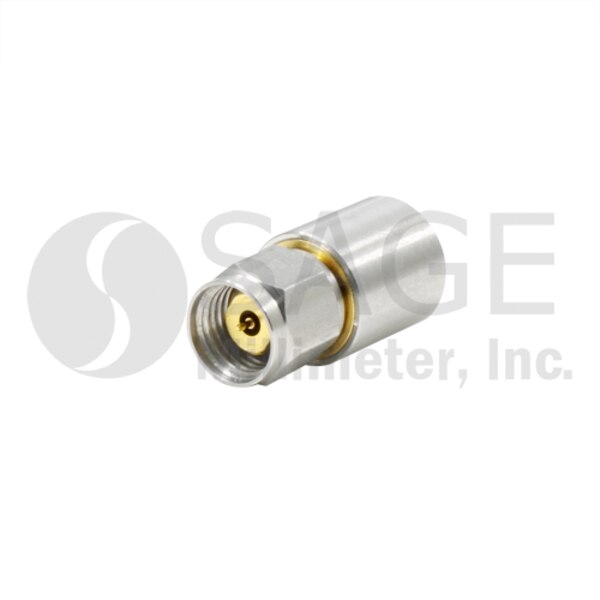

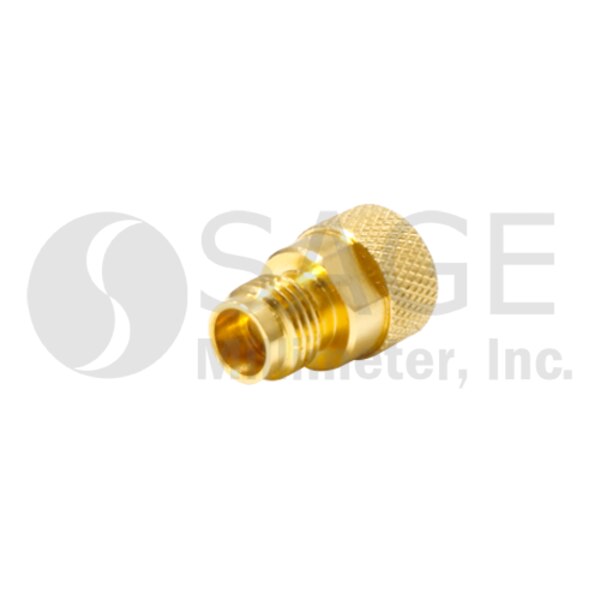

Components IncludedMetrology 1.85 mm Male and Female Matching Loads

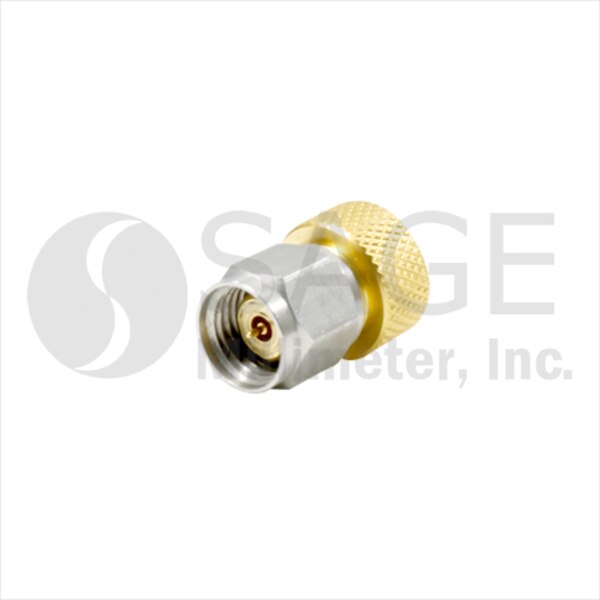

Metrology 1.85 mm Male and Female Opens

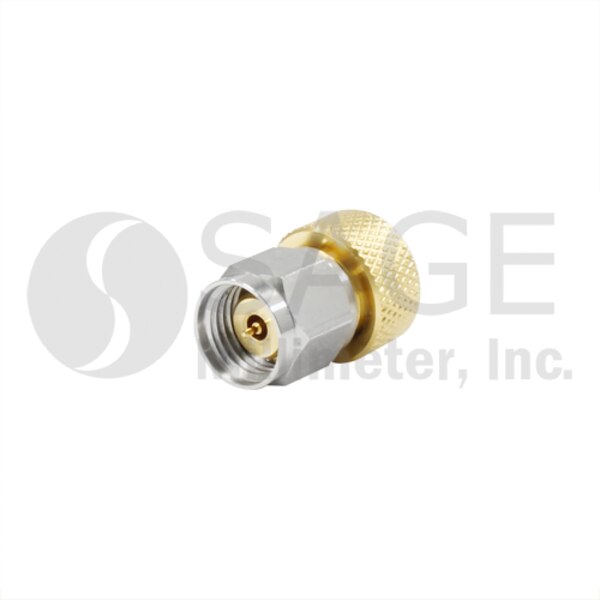

Metrology 1.85 mm Male and Female Shorts

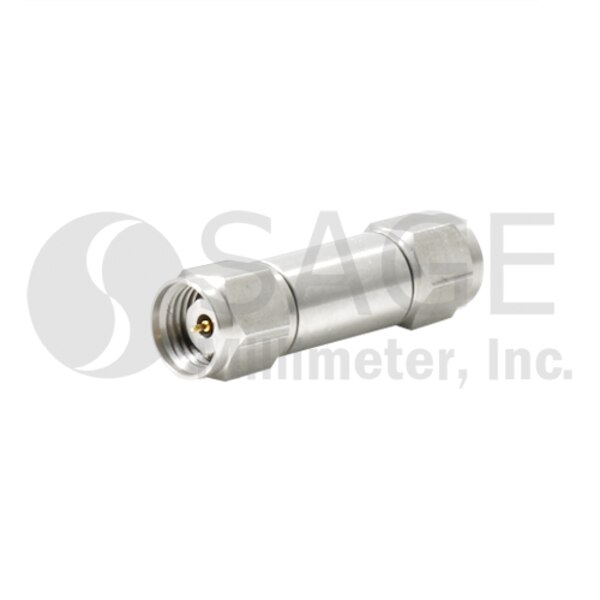

Metrology 1.85 mm (M), (F), and (M) to (F) Adapters

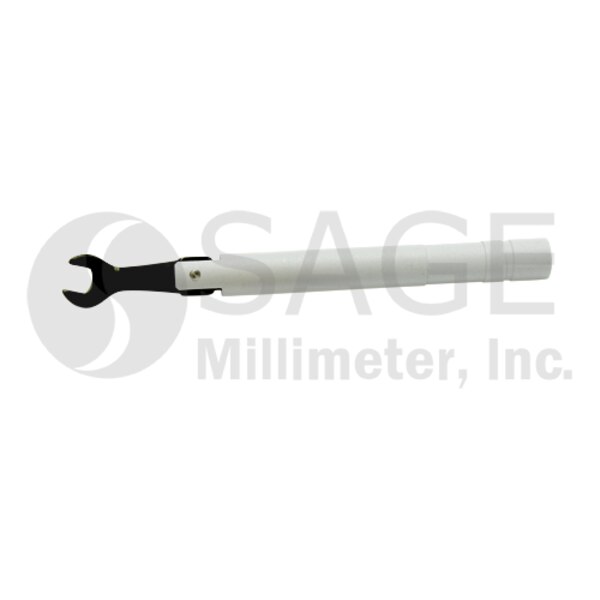

Metrology 5/16"" Hex Torque Wrench (3.5 mm)
Electrical SpecificationsLoad VSWR:1.15:1 Max
Load Power Handling:0.5 Watts Max
Open Phase Error:±2.25° Max
Short Phase Error:±2.0° Max
Adapter VSWR:1.25:1 Max
