Coaxial DC Block

1.85 mm, 5 MHz to 67 GHz

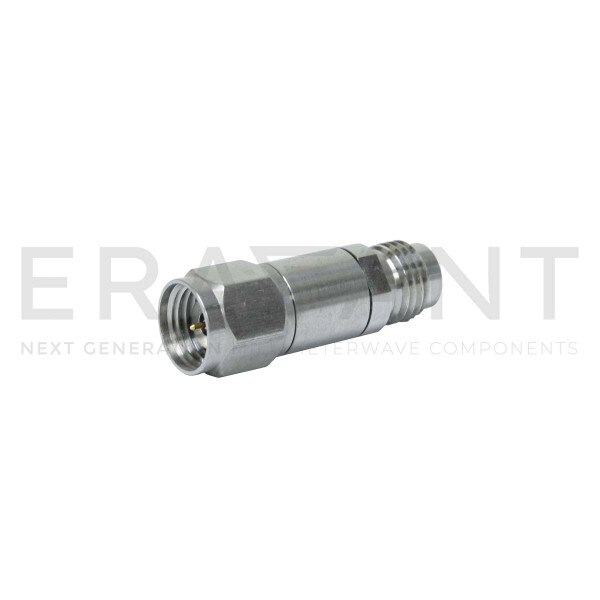

SCB-050-VFVM-U7 is a coaxial DC block that prevents the flow of DC current in the frequency range of 5 MHz to 67 GHz. The DC block has a typical insertion loss of 0.5 dB, a nominal return loss of 18 dB, and a characteristic impedance of 50 ohms, respectively. It is manufactured with 1.85 mm male and female connectors for convenient circuit insertion. The breakdown voltage is +50 Volts.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency5 MHz
Maximum Frequency67 GHz
Return Loss18 dB
Impedance50 Ohms
Insertion Loss0.5 dB
Connector 11.85 mm Female
Connector 21.85 mm Male
