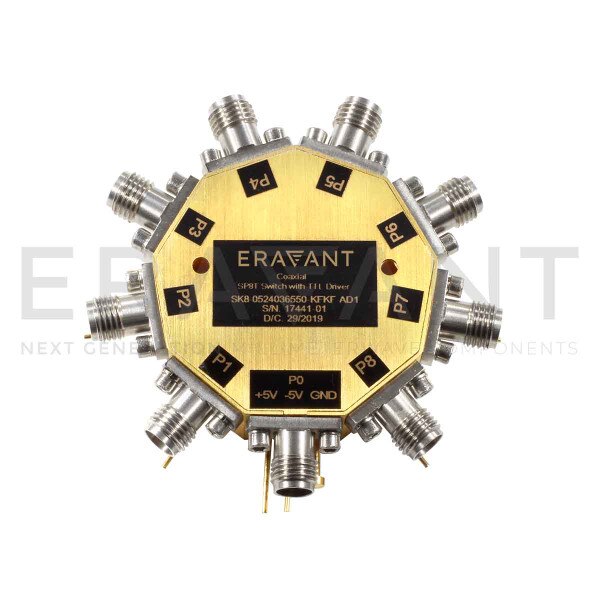

Absorptive SP8T PIN Diode Switch

0.5 to 40 GHz, 50 dB Isolation, 2.92 mm (F)
SKU:SK8-0524036550-KFKF-AD1
Availability:3 Days ARO
SK8-0524036550-KFKF-AD1 is an absorptive PIN diode based, single pole, eight throw switch with a TTL driver that operates between 0.5 and 40 GHz. The switch requires a separate -5 V and +5 V biasing in addition to the TTL control. This model offers a small form factor, typical 6.5 dB insertion loss, and 50 dB minimum isolation with a switching speed up to 50 nanoseconds. The switch has female K connectors for all RF ports and solder pins for bias port and TTL control.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$4,650.00
3 - 4$4,417.50
5 - 9$4,196.63

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency0.5 GHz
Maximum Frequency40 GHz
Insertion Loss6.5 dB
Isolation50 dB
Input RF Power+20 dBm
Switching Speed50 ns
Switch TypeAbsorptive
RF Port2.92 mm (F)
