Broadband Amplifier

0.5 to 40 GHz, 43 dB Gain, +18 dBm P1db, 6.0 dB Noise Figure, 2.92 mm (F)
SKU:SBB-0524034318-KFKF-E8
Availability:Contact Us for Quote

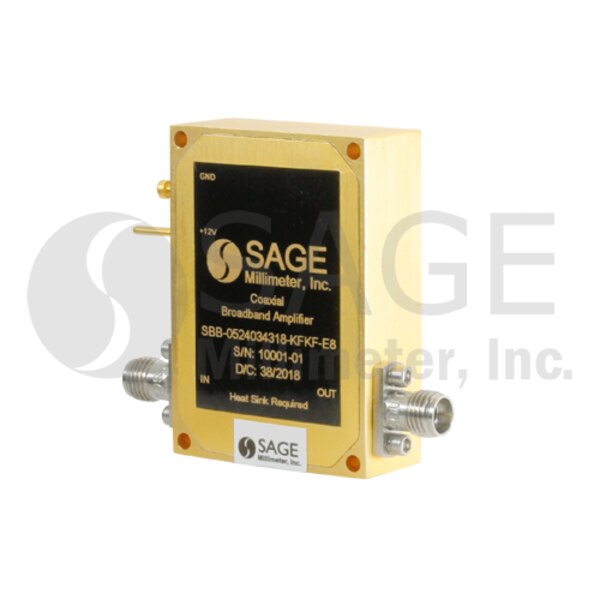

SBB-0524034318-KFKF-E8 is a broadband amplifier with a typical small signal gain of 43 dB, a nominal P1dB of +18 dBm, and a typical noise figure of 6.0 dB across the frequency range of 0.5 to 40 GHz. The DC power requirement for the amplifier is +12 VDC/650 mA. The use of a heat sink is advised to assist in cooling the device. The RF connectors are female K connectors. Other port configurations, such as male K connectors for either input or output port, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.5 GHz
Maximum Frequency40 GHz
Gain43 dB
P1dB+18 dBm
Psat+19 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+12 VDC/650 mA
RF Input/OutputK (F)
