Frequency Synthesizer Module

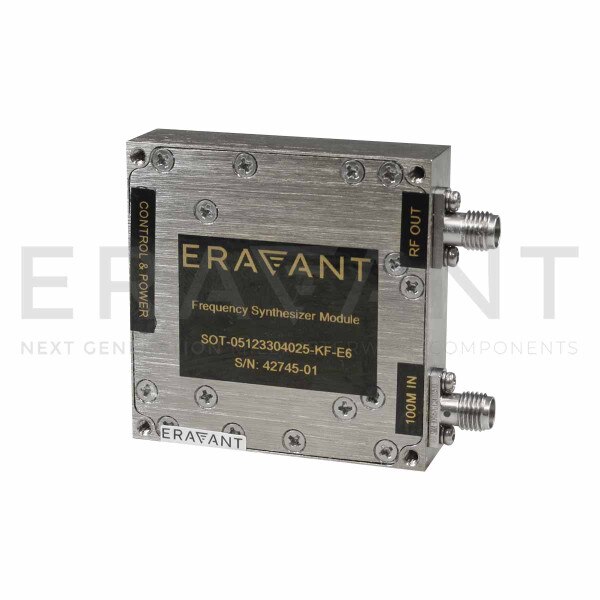

SOT-05123304025-KF-E6 is a low phase noise frequency synthesizer module that covers a frequency range of 0.05 to 22.6 GHz. The model works with 100 MHz external reference. The output power of the module is +4 dBm with ± 5 dB power flatness. The frequency step resolution of the module is up to 0.1 mHz. The oscillator has a built-in voltage regulator to further improve the signal quality and provide over voltage protection. The normal operating state of the oscillator is external referenced. This module can be directly controlled with digital signals following SPI communication protocol through 53261-0671-7P Connector. An evaluation kit including the control board to operate this synthesizer can be purchased separately under M/N: SOT-EVA-S1.
