Broadband Amplifier

0.01 to 50 GHz, 32 dB Gain, +18 dBm P1dB, 6.0 dB Noise Figure, 2.4 mm (F)
Availability:IN STOCKPlease contact us if you need more units than what is available online.

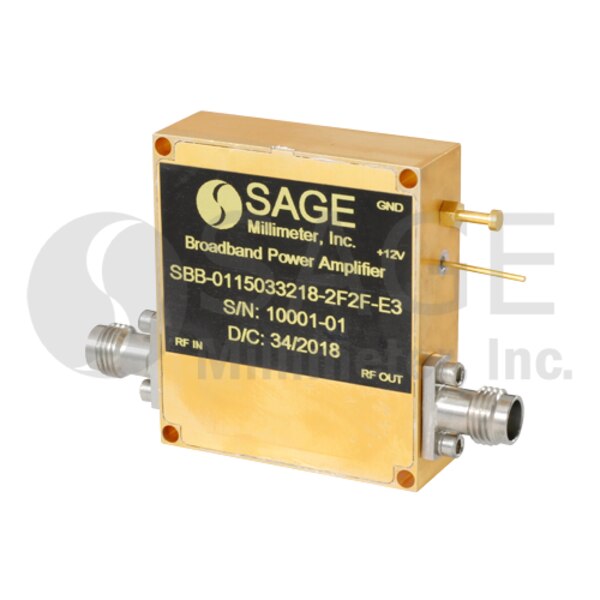

SBB-0115033218-2F2F-E3 is a broadband amplifier with a typical small signal gain of 32 dB, a nominal P1dB of +18 dBm, and a typical noise figure of 6.0. dB across the frequency range of 0.01 to 50 GHz. The DC power requirement for the amplifier is +12 VDC at 450 mA. The use of a heat sink is advised to assist in cooling the device. The RF connectors are female 2.4 mm connectors. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.01 GHz
Maximum Frequency50 GHz
Gain32 dB
P1dB+18 dBm
Psat+19 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+12 VDC/450 mA
RF Input/Output2.4 mm (F)
