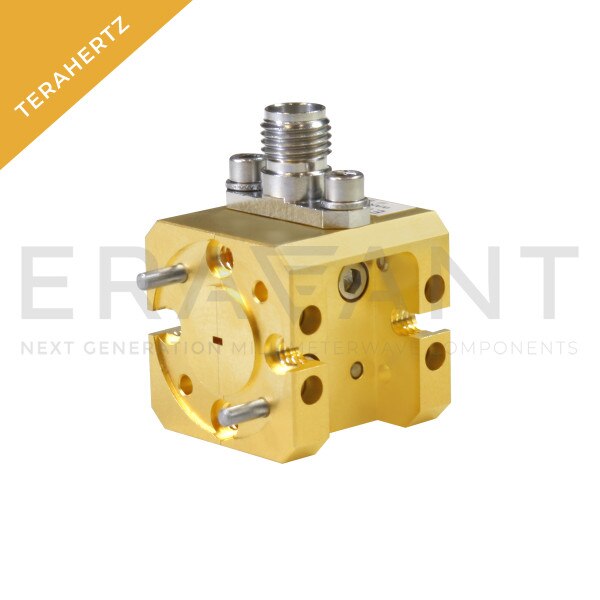

F-Band Subharmonically Pumped Mixer

90 to 140 GHz RF, 45 to 70 GHz LO, DC to 5.0 GHz IF, +10 dBm LO Power, WR-08 Waveguide
SFS-08-UEB is an F-Band subharmonically pumped mixer. The mixer is designed with high performance GaAs Schottky diodes and accepts an LO frequency at half the RF frequency to cover the frequency range from 90 to 140 GHz. With a low LO frequency range of 45 to 70 GHz, this mixer is well suited for low-cost F-band system solutions due to local oscillator frequency requirement. The mixer provides 15 dB conversion loss, 30 dB 2LO to RF isolation, and 30 dB LO to IF isolation typically. The subharmonically pumped mixers in other frequency bands are offered under various model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Minimum LO Frequency45 GHz
Maximum LO Frequency70 GHz
Minimum IF FrequencyDC
Maximum IF Frequency5.0 GHz
LO Pumping Power+10 dBm
Conversion Loss15 dB
RF PortWR-08 Waveguide
