E-Band Single Sideband Modulator

77 to 82 GHz, 25 dB Conversion Loss, 20 dBc Image Rejection
Availability:IN STOCKPlease contact us if you need more units than what is available online.

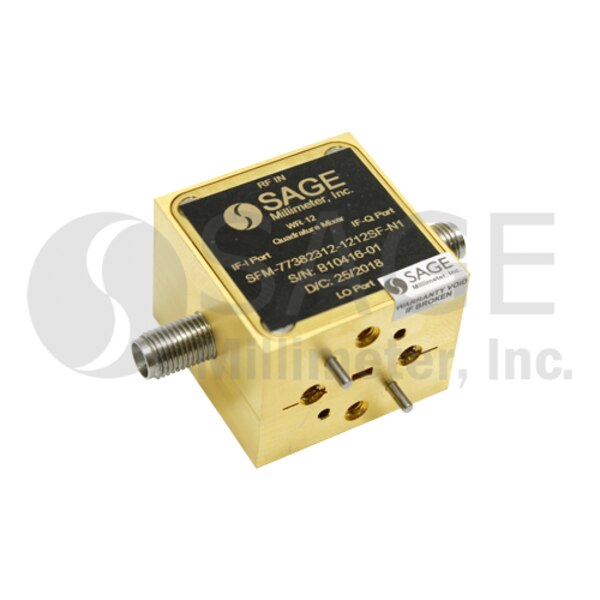

SFM-77382312-1212SF-N1 is a E Band single side band modulator that covers the frequency range of 77 to 82 GHz. The typical conversion loss of the modulator is 25 dB with the quadrature IF driving signals of 6 Vp-p/3 mA for both I and Q ports. The typical input/output isolation and image rejection is 20 dB, respectively. In addition, the modulator can be readily used as an I/Q mixer or image rejection mixer by using one of the RF as LO port and/or adding the IF hybrid coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Output RF Frequency Minimum77 GHz
Output RF Frequency Maximum82 GHz
IF Frequency MinimumDC
IF Frequency Maximum1 GHz
Conversion Loss25 dB
Image Rejection20 dBc
