E-Band DPDT Motorized Latching Switch with TTL Driver, WR-12, E-Plane

60 to 90 GHz, 60 dB Isolation, WR-12 Waveguide
SKU:SWJ-12-L1
Availability:3 to 4 Weeks ARO

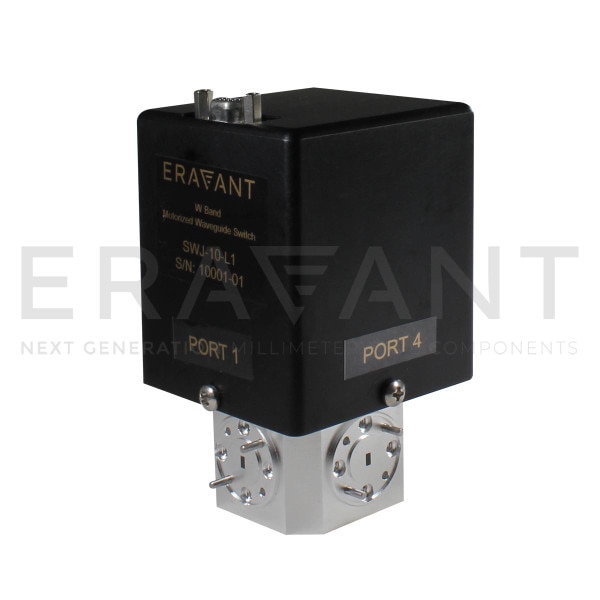

SWJ-12-L1 is a WR-12 motorized double pole, double throw (DPDT) transfer switch with a TTL driver that operates from 60 to 90 GHz. It is an E-plane, bidirectional, latching-type switch. The typical insertion loss is 0.4 dB and the typical isolation is 60 dB. The RF ports are WR-12 waveguides with UG-387/U anti-cocking flanges. The bias and control signal is supplied by a 9 pin Micro-D type connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss0.4 dB
Isolation60 dB
Return Loss20 dB
Bias12 VDC/1.4 A
Switching Speed125 ms
Power Handling100 W (CW)
RF PortsWR-12 Waveguide
