V-Band Subharmonically Pumped Mixer

57 to 75 GHz RF, 28.5 to 37.5 GHz LO, DC to 12 GHz IF, +16 dBm LO Power, WR-15 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

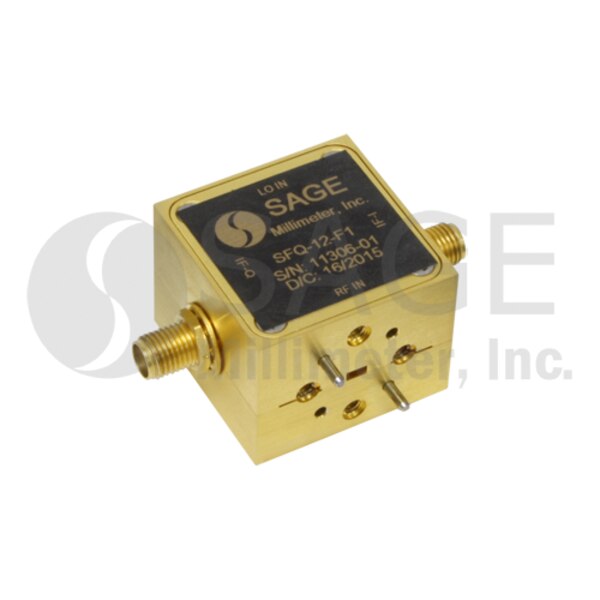

SFT-57375319-15KFSF-N1-M is a V Band subharmonically pumped quadrature mixer that covers the frequency range of 57 to 75 GHz. The typical conversion loss of the quadrature mixer is 19 dB with an LO driving power of +16 dBm. With a low LO frequency range of 28.5 to 37.5 GHz, this mixer is well suited for low cost V band system solutions. The typical LO to RF port isolation is 30 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency57 GHz
Maximum RF Frequency75 GHz
Minimum LO Frequency28.5 GHz
Maximum LO Frequency37.5 GHz
Minimum IF FrequencyDC
Maximum IF Frequency12 GHz
LO Pumping Power+16 dBm
Conversion Loss19 dB
RF PortWR-15 Waveguide
