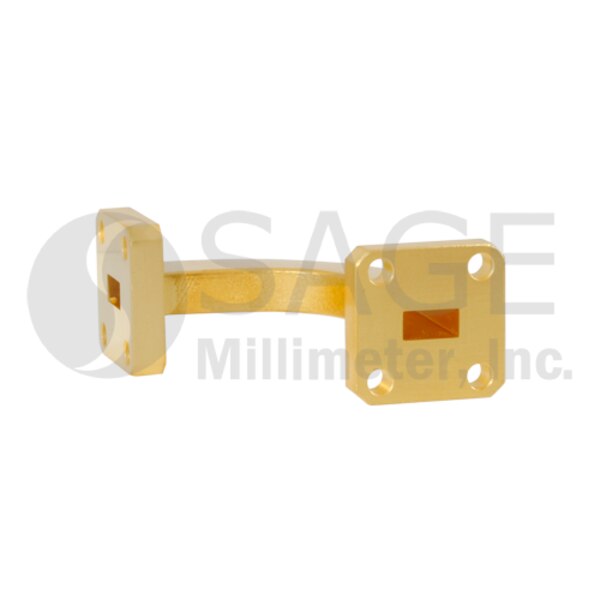

90° H-Plane Waveguide Bend

WR-42 Waveguide, K-Band, 1.25" Bend Radius
SKU:SWB-42090-HB
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWB-42090-HB is a 90 degree, WR-42 H-plane waveguide bend with UG-595/U square flanges. The bend radius is 1.25”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 18 to 26.5 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length1.25"
Waveguide SizeWR-42
