Vector Network Analyzer Waveguide Calibration Kit, Product Discontinued

WR-42, K-Band, 18 to 26.5 GHz
This product has been improved and is now listed as STQ-TO-42-S1-CKIT1. Read more about Limited Run Products here.

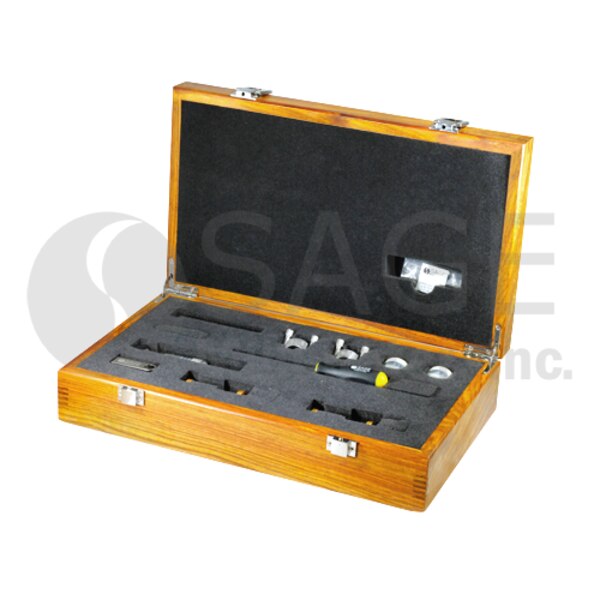

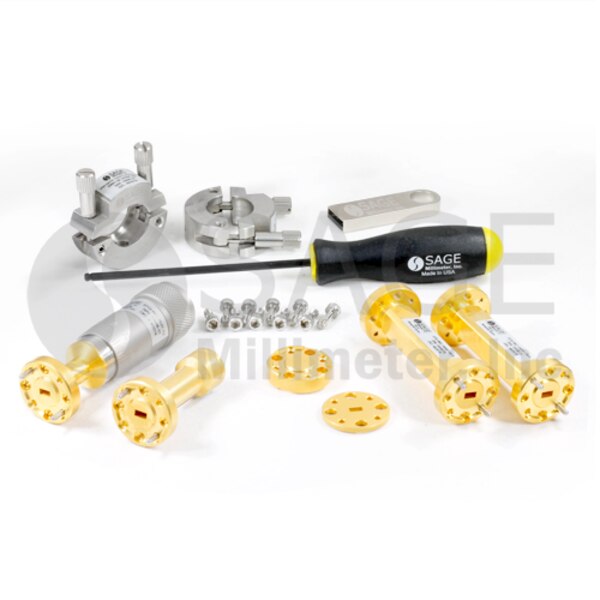

STQ-TO-42-U3-CKIT1 is a Ka-band waveguide vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of 18 to 26.5 GHz. The calibration kit consists of two straight waveguide sections, one fixed short, one fixed matching load, one sliding load, one ¼ wavelength offset, two waveguide quick connects, ten 3/32 hex head waveguide screws, a 3/32" hex waveguide screw driver and one calibration data USB drive. The calibration kit is collected in a wooden box and is an ideal higher performance metrology grade calibration set for VNA system calibrations.
Login to view pricing

Technical Details

Frequency Range18 to 26.5 GHz
Components IncludedMetrology Straight Waveguide Section, 2" Long
Metrology Fixed Short
Metrology Fixed Waveguide Load
Metrology ¼ Wavelength Offset
Waveguide Quick Connect, 0.75" Diameter Flange
Waveguide Screws, 3/32 Hex Head
Waveguide Screw Driver, 3/32 Hex Head
Calibration Data, USB Drive
Electrical SpecificationsFixed Load VSWR:1.03:1 Max
Fixed Load Power Handling:1 Watts Max
Adapter VSWR:1.20:1 Max
