WR-34 Waveguide to Coax Adapter

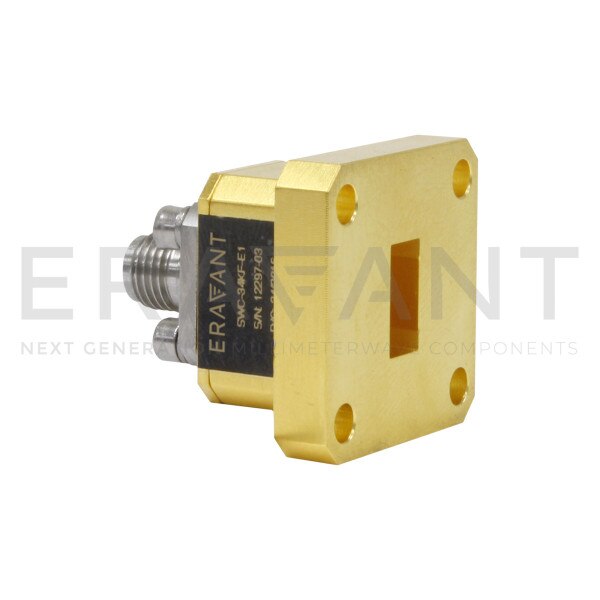

WR-34 Waveguide to 2.4 mm (F), End Launch
SKU:SWC-342F-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

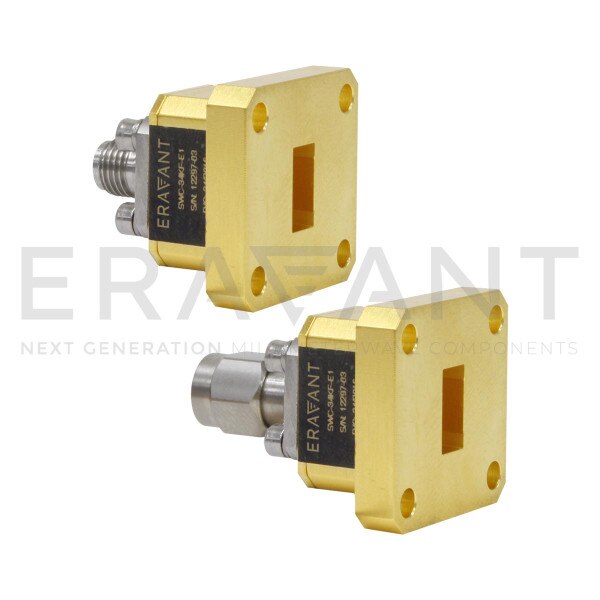

Models SWC-342F-E1 and SWC-342M-E1 are end launch (180°) WR-34 waveguide to coax adapters that cover the frequency range of 22 to 33 GHz. They are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.4 mm coax connector. The right angle (90°) versions are offered under model numbers SWC-342F-R1 and SWC-342M-R1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $350.00
25 - 49 $315.00
50 - 99 $283.50

Bulk Availability

QuantityAvailability
1 - 14In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Loss0.35 dB
Return Loss20 dB
Power Handling50 W
Waveguide PortWR-34 Waveguide
Coax Type2.4 mm
Coax GenderFemale
ConfigurationEnd Launch (180°)
