Vector Network Analyzer Waveguide Calibration Kit

WR-34, 22 to 33 GHz
SKU:STQ-TO-34-S1-CKIT1
Availability:6 to 8 Weeks ARO

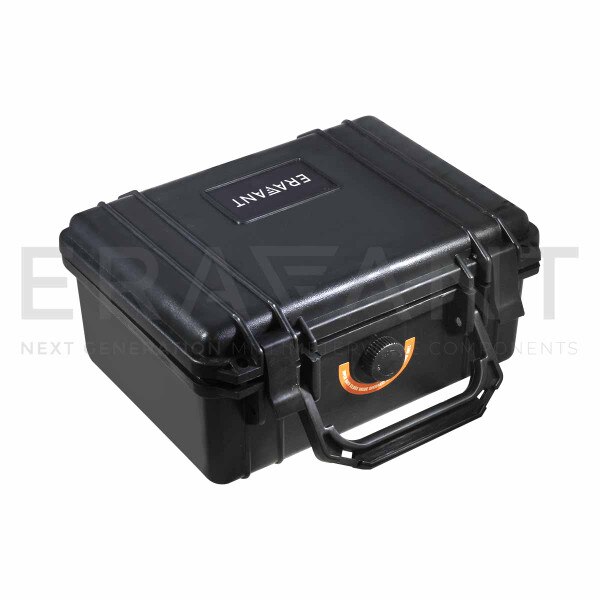

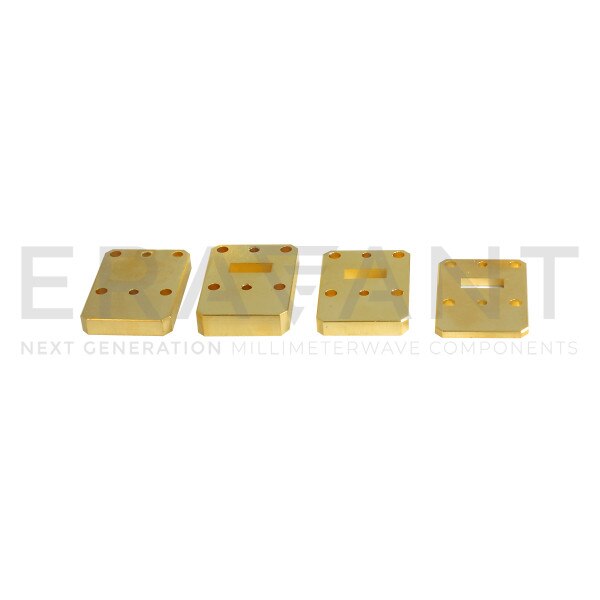

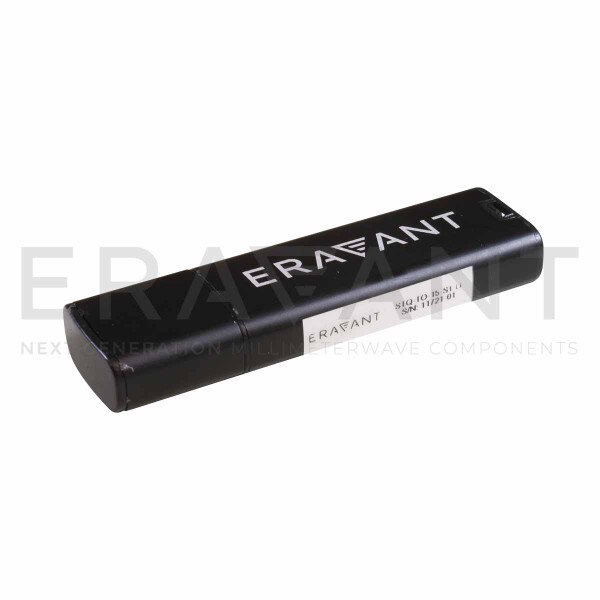

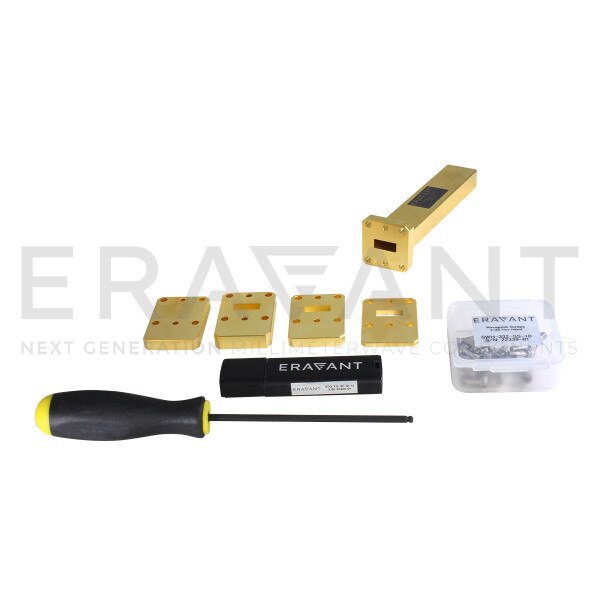

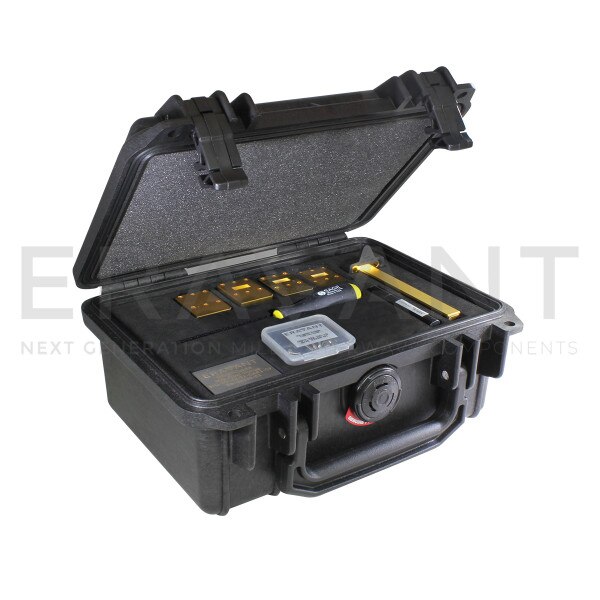

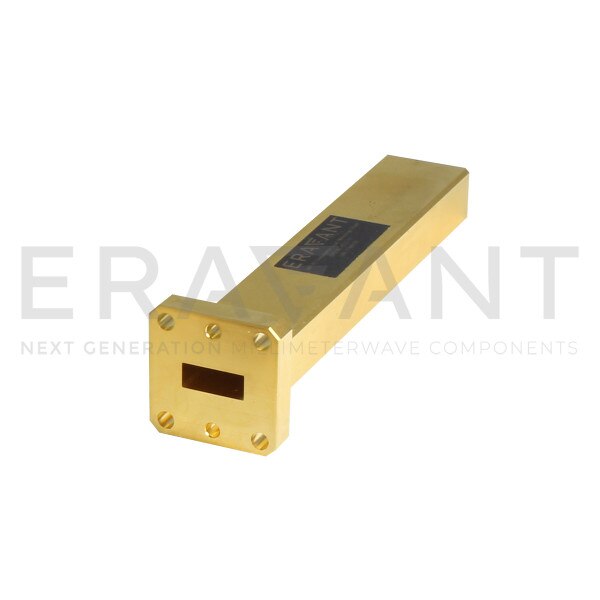

STQ-TO-34-S1-CKIT1 is a metrology grade WR-34 waveguide vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of 22 to 33 GHz. The calibration kit consists of one fixed short, one fixed matching load, waveguide shims (⅛λg, ¼λg, ⅜ λg offsets), ten 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screw driver and one calibration data USB drive. The calibration kit is collected in a ruggedized box and is an ideal higher perfomance metrology grade calibration set for VNA system calibrations. The calibration kit can be offered with NIST traceable calibration data and certification for an added fee.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,250.00
3 - 4 $3,087.50
5 - 9 $2,933.13

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Frequency Range26.5 to 40 GHz
TypeWR-34
Components IncludedMetrology Fixed Short
Metrology Fixed Waveguide Load
Metrology ⅛ Wavelength Offset
Metrology ¼ Wavelength Offset
Metrology ⅜ Wavelength Offset
Waveguide Screws, 3/32 Hex Head
Extended Waveguide Screws, 3/32 Hex Head
Alignment Dowel Pins
Waveguide Screw Driver, 3/32 Hex Head
Calibration Data, USB Drive
Electrical SpecificationsFixed Load VSWR
