WR-28 Waveguide to Coax Adapter

WR-28 Waveguide to 1.85 mm (F), Right Angle
SKU:SWC-2434431505-28VF-R1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

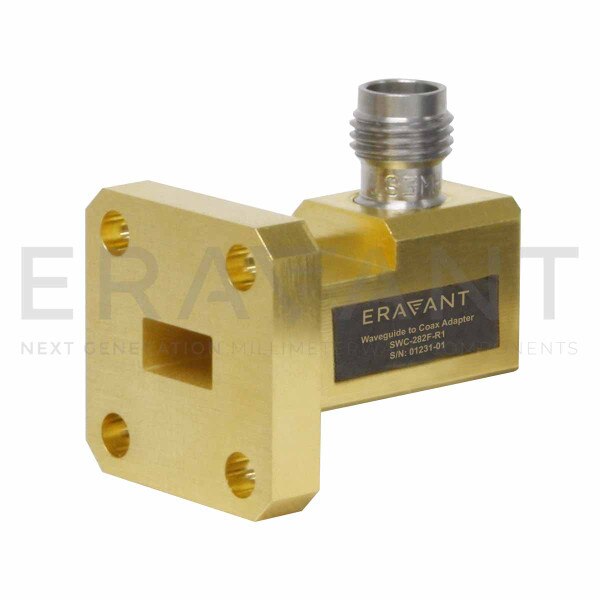

SWC-2434431505-28VF-R1 is a right angle (90°) WR-28 waveguide to coax adapter that covers the frequency range of 24 to 43.5 GHz. They are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the WR-28 waveguide and female 1.85 mm (V) coax connector. The male connector version is offered under model number SWC-2434431505-28VM-R1. End launch (180°) versions are offered under model numbers SWC-2434431505-28VF-E1 and SWC-2434431505-28VM-E1. Other connector configurations, such as 2.4 mm connectors, are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24.0 GHz
Maximum Frequency43.5 GHz
Insertion Loss0.50 dB
Return Loss15 dB
Power Handling30 W
Waveguide PortWR-28 Waveguide
Coax Type1.85 mm (V)
Coax GenderFemale
ConfigurationRight Angle (90°)
