WR-28 Waveguide to Coax Adapter

WR-28 Waveguide to 2.92 mm (F), End Launch
SKU:SWC-28KF-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

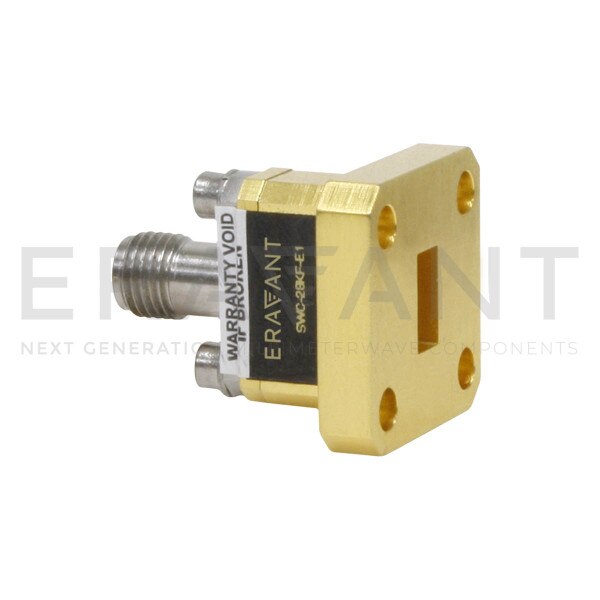

SWC-28KF-E1 is an end launch (180°) WR-28 waveguide to coax adapter that covers the frequency range of 26.5 to 40 GHz. The adapter is designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.92 mm (K) coax connector. The right angle (90°) version is offered under model number SWC-28KF-R1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Insertion Loss0.35 dB
Return Loss20 dB
Power Handling20 W
Waveguide PortWR-28 Waveguide
Coax Type2.92 mm (K)
Coax GenderFemale
ConfigurationEnd Launch (180°)
