45° H-Plane Waveguide Bend

WR-28 Waveguide, Ka-Band, 1.25" Bend Radius
SKU:SWB-28045-HB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

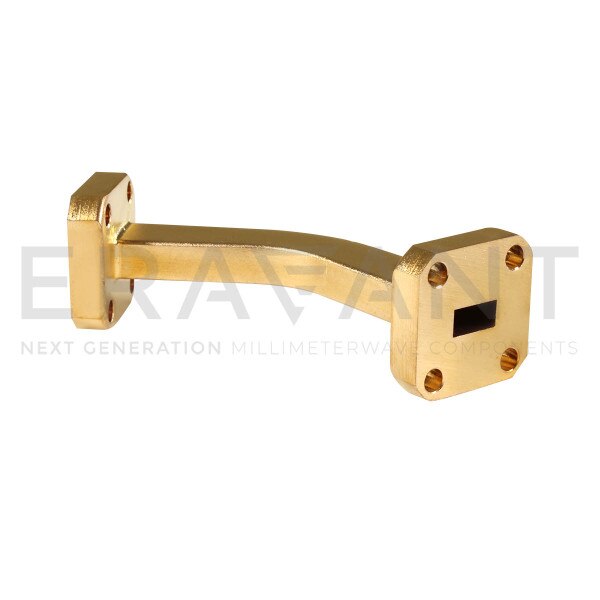

SWB-28045-HB is a 45 degree, WR-28 H-plane waveguide bend with UG-599/U square flanges. The bend radius is 1.25". The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 26.5 to 40 GHz.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 24 $165.00
25 - 49 $148.50
50 - 99 $133.65

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Angle45 Degrees
OrientationH-Plane Bend
Bend Radius/Length1.25"
Waveguide SizeWR-28
