45° Left-Handed Waveguide Twist

WR-28 Waveguide, Ka-Band, 1.0" Insertion Length, UG-383/U Flange
SKU:SWB-28045L-TB-383-1.0
Availability:IN STOCKPlease contact us if you need more units than what is available online.

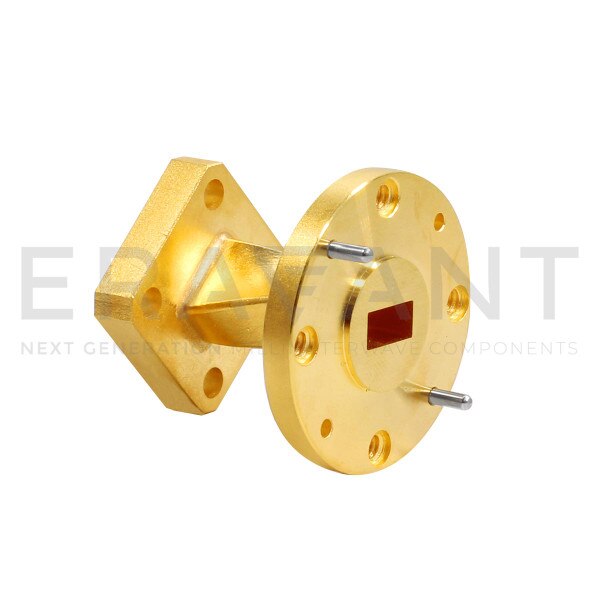

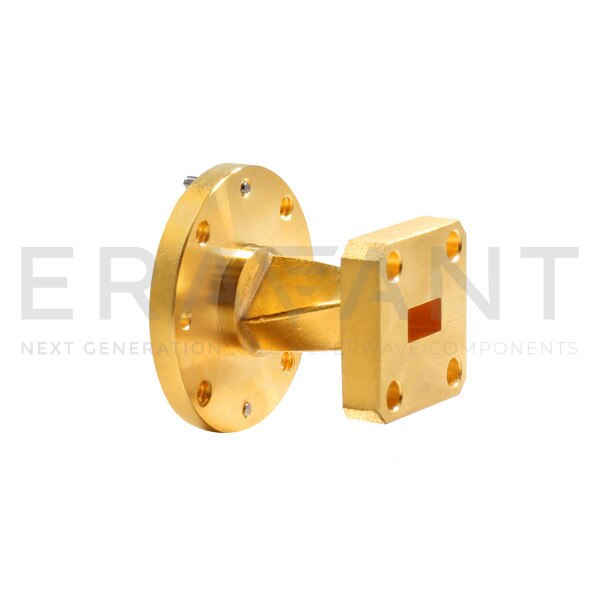

SWB-28045L-TB-383-1.0 is a 45 degree, WR-28 left-handed waveguide twist with a UG-599/U square and a UG-383/U circular flange. The length of the twist is 1.0". The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 26.5 to 40 GHz.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$165.00
25 - 49$148.50
50 +$133.65

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Angle45 Degrees
OrientationLeft-Handed Twist
Bend Radius/Length1.0"
Waveguide SizeWR-28 UG-383/U
