WR-22 Waveguide to Coax Adapter

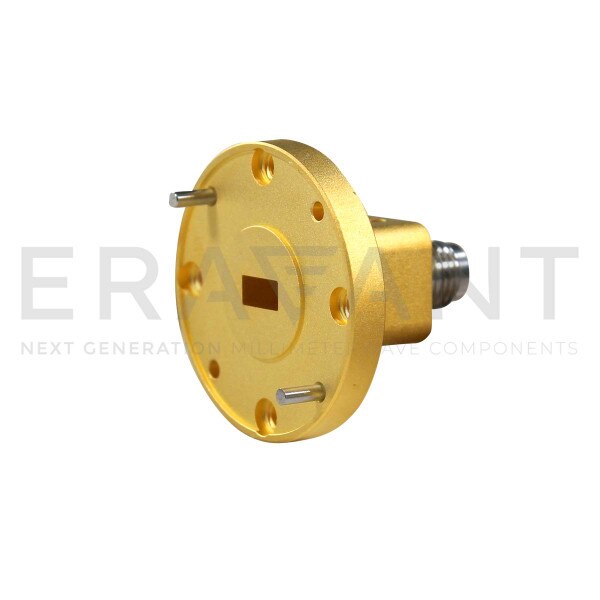

WR-22 Waveguide to 2.4 mm (F), End Launch
SKU:SWC-222F-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWC-222F-E1 is an end launch (180°) Q-Band waveguide to coax adapter that covers the frequency range of 33 to 50 GHz. The adapter is designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.4 mm coax connector. The right angle (90°) version is offered under model number SWC-222F-R1. Other coaxial connector types are also offered under various model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $565.00
10 - 24 $508.50
25 - 49 $457.65

Bulk Availability

QuantityAvailability
1 - 18In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.40 dB
Return Loss18 dB
Power Handling40 W
Waveguide PortWR-22 Waveguide
Coax Type2.4 mm
Coax GenderFemale
ConfigurationEnd Launch (180°)
