90° E-Plane Waveguide Bend

WR-19 Waveguide, U-Band, 1.0" Bend Radius
Availability:IN STOCKPlease contact us if you need more units than what is available online.
For a more cost effective option that can deliver immediately, consider our Limited Run model SWB-19090-EB-NAC as an alternative solution. Read more about Limited Run Products here.

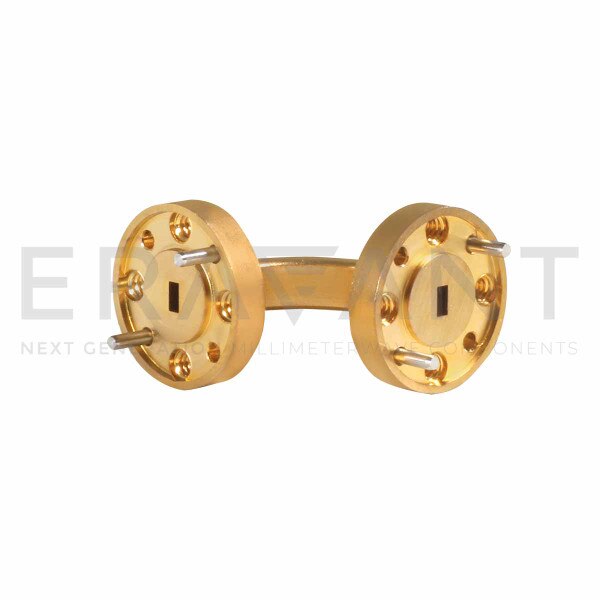

SWB-19090-EB is a 90 degree, WR-19 E-plane waveguide bend with UG-383/U-M anti-cocking flanges. The bend radius is 1.0". The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 40 to 60 GHz. Additional lengths may be available in stock, please contact us to inquire further.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length1.0"
Waveguide SizeWR-19
