90° H-Plane Waveguide Bend

WR-15 Waveguide, V-Band, 0.75" Bend Radius
SKU:SWB-15090-HB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

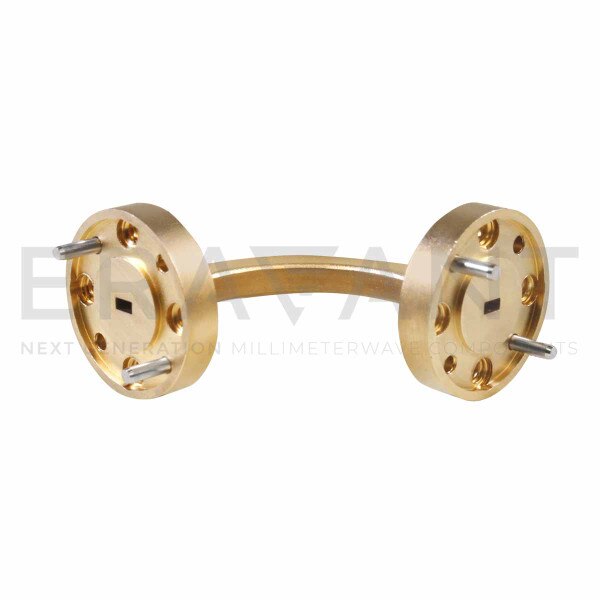

SWB-15090-HB is a 90 degree, WR-15 H-plane waveguide bend with UG-385/U circular anti-cocking flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 50 to 75 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $160.00
25 - 49 $144.00
50 - 99 $129.60

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-15
