90° E-Plane Waveguide Bend, Non Anti-Cocking, Limited Run

WR-15 Waveguide, V-Band, 0.75" Bend Radius
SKU:SWB-15090-EB-NAC
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWB-15090-EB as an alternative solution. Read more about Limited Run Products here.

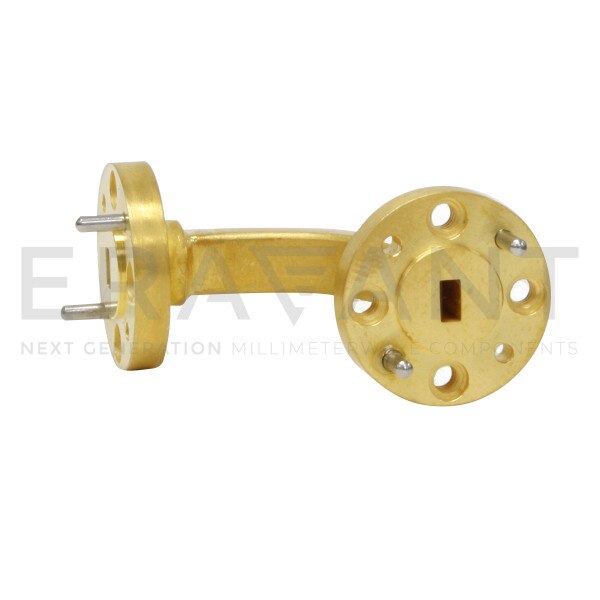

SWB-15090-EB is a 90 degree, WR-15 E-plane waveguide bend with UG-385/U circular flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 50 to 75 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-15
