90° H-Plane Waveguide Bend

WR-15 Waveguide, V-Band, 1.0" Bend Radius
SKU:SWB-15090-HB-1.0
Availability:IN STOCKPlease contact us if you need more units than what is available online.

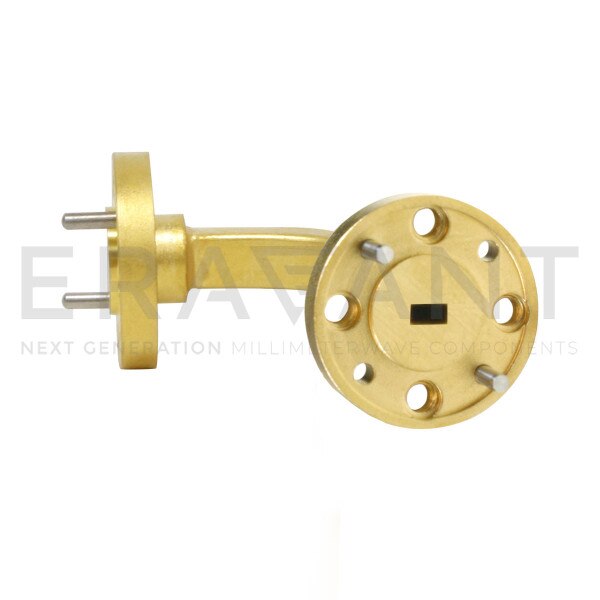

SWB-15090-HB-1.0 is a 90 degree, WR-15 H-plane waveguide bend with UG-385/U anti-cocking flanges. The bend radius is 1.0”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 50 to 75 GHz.

ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length1.0"
Waveguide SizeWR-15
