90° H-Plane Waveguide Bend, Non Anti-Cocking, Product Discontinued

WR-12 Waveguide, E-Band, 0.75" Bend Radius
SKU:SWB-12090-HB-NAC
Availability:Contact Us for Quote
This product has been improved and is now listed as SWB-12090-HB. Read more about Limited Run Products here.

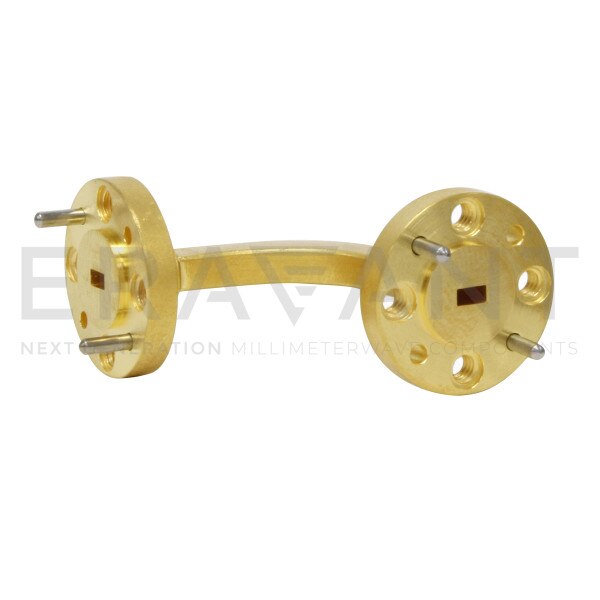

SWB-12090-HB-NAC is a 90 degree, WR-12 H-plane waveguide bend with UG-387/U circular flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 60 to 90 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-12
