45° E-Plane Waveguide Bend

WR-12 Waveguide, E-Band, 0.75" Bend Radius
SKU:SWB-12045-EB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

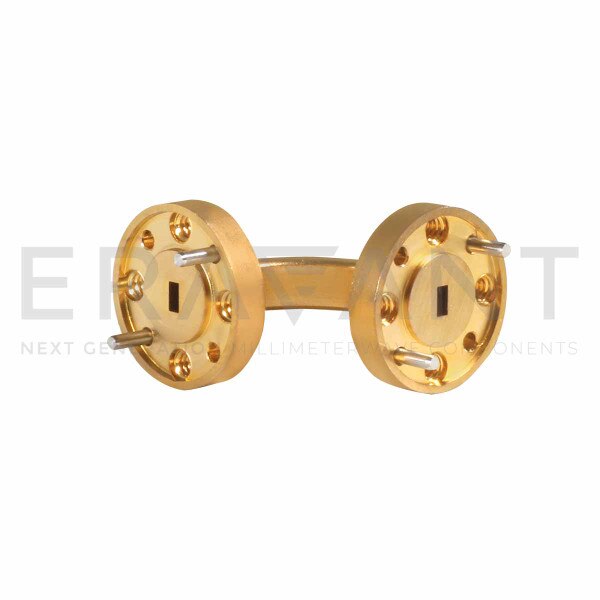

SWB-12045-EB is a 45 degree, WR-12 E-plane waveguide bend with UG-387/U anti-cocking flanges. The bend Radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 60 to 90 GHz. The waveguide is also available in instrumentation grade. Additional lengths may be available in stock, please contact us to inquire further.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Angle45 Degrees
OrientationE-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-12
