45° Right-Handed Waveguide Twist

WR-10 Waveguide, W-Band, 1.0" Insertion Length
SKU:SWB-10045R-TB-1.0
Availability:IN STOCKPlease contact us if you need more units than what is available online.

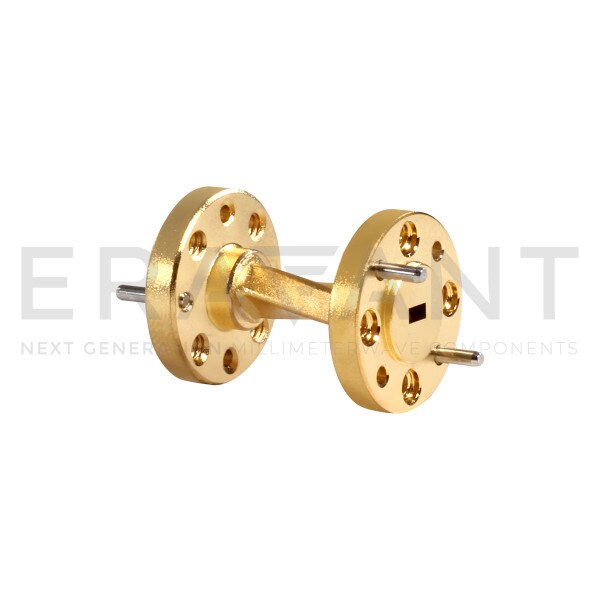

SWB-10045R-TB-1.0 is a 45 degree, WR-10 right-handed waveguide twist with UG-387/U-M circular flanges. The length of the twist is 1.00”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 75 to 110 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $160.00
25 - 49 $144.00
50 - 99 $129.60

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Angle45 Degrees
OrientationRight-Handed Twist
Bend Radius/Length1.00"
Waveguide SizeWR-10
