45° Left-Handed Waveguide Twist, Non Anti-Cocking, Limited Run

WR-08 Waveguide, F-Band, 1.0" Insertion Length
SKU:SWB-08045L-TB-NAC-1.0
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWB-08045L-TB-1.0 as an alternative solution. Read more about Limited Run Products here.

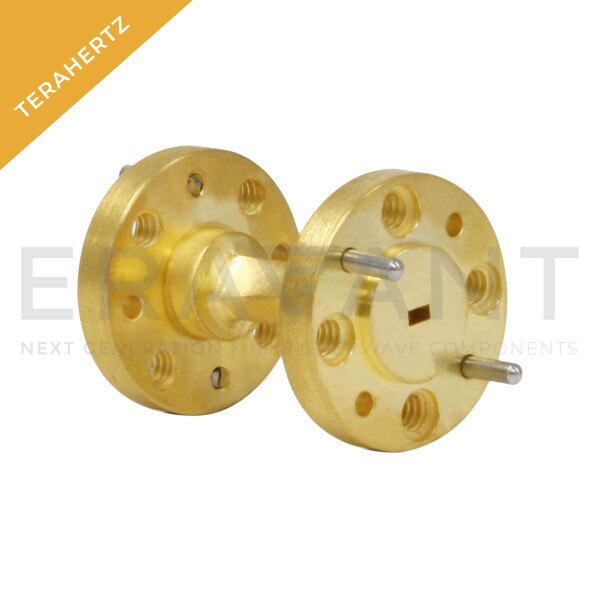

SWB-08045L-TB-1.0 is a 45 degree, WR-08 left-handed waveguide twist with UG-387/U-M circular flanges. The length of the twist is 1.0”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 90 to 140 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $128.00
25 - 49 $115.20
50 - 99 $103.68

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Angle45 Degrees
OrientationLeft-Handed Twist
Bend Radius/Length1.00"
Waveguide SizeWR-08
