WR-08 Waveguide Open

F-Band, Fixed
SKU:SWO-08-F1
Availability:3 Days ARO

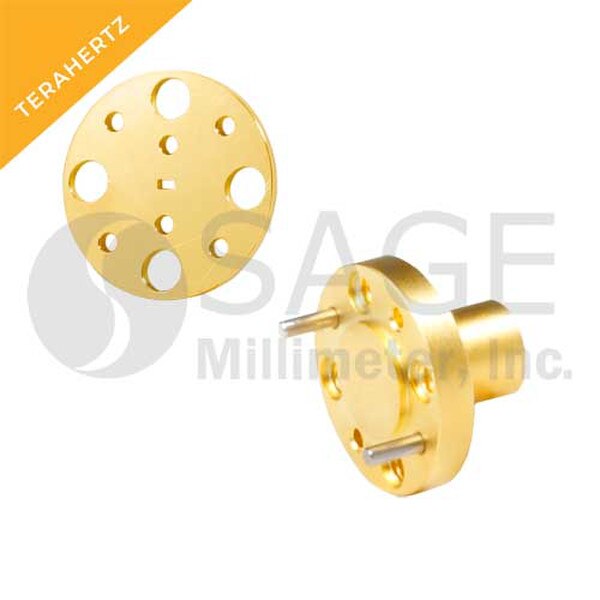

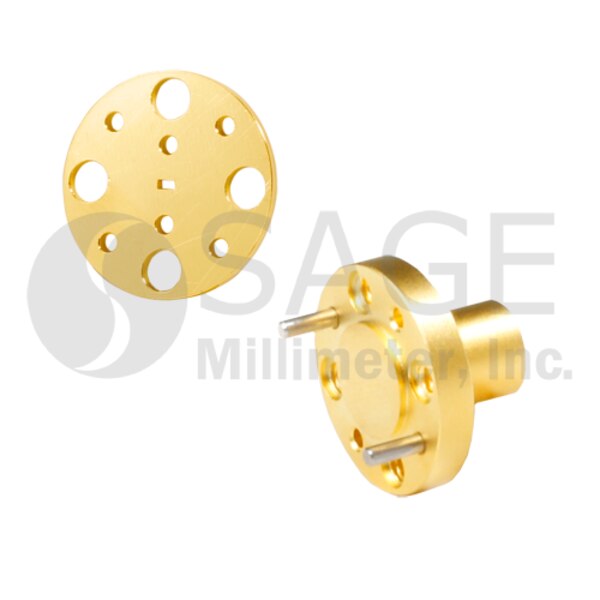

SWO-08-F1 is a fixed waveguide open with a UG-387/U-M flange covering the frequency range from 90 to 140 GHz. The product consists of a waveguide short (model number SWS-VG-F1) and a ¼ ?g waveguide shim (model number SWI-08033-SB). The waveguide shim is 0.033" thick offering perfect open at the center frequency of 115 GHz when combined with the waveguide short. The product is manufactured with a precision machining process to ensure high quality and ruggedness. The open offers good reflection in the entire frequency range.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$355.00
25 - 49$319.50
50 - 99$287.55

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Length0.033"
Waveguide FlangeUG-387/U-M Flange
Waveguide Short TypeFixed
