Waveguide Taper Transition

WR-05 Rectangular to WR-03 Waveguide
SKU:SWT-0503-LB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

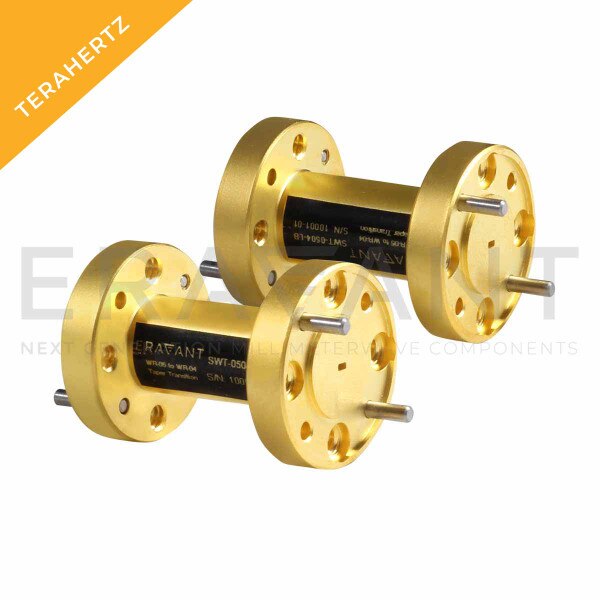

SWT-0503-LB is a WR-05 to WR-03 rectangular waveguide taper transition. The taper transition is manufactured by either EDM machining or electro-forming techniques to ensure high accuracy and a quality surface finish. The transition only induces a fraction of a dB insertion loss and offers a return loss of 28 dB or better.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $880.00
10 - 24 $792.00
25 - 49 $712.80

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Waveguide Size 1WR-05 Waveguide
Waveguide Size 2WR-03 Waveguide
Transition TypeTaper
Insertion Length1.0"
