90° Waveguide Twist

WR-03 Waveguide, WR-03 Band, 1.25" Insertion Length
SKU:SWB-03090-TB
Availability:3 to 4 Weeks ARO

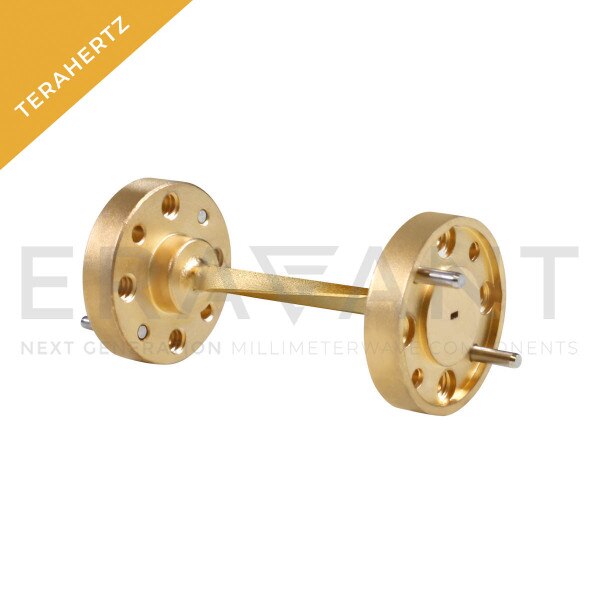

SWB-03090-TB is a 90 degree, WR-03 waveguide twist with UG-387/U-M Anti-Cocking Flange flange. The length of the twist is 1.25”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 325 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $510.00
10 - 24 $459.00
25 - 49 $413.10

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency35 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.25"
Waveguide SizeWR-03
