90° H-Plane Waveguide Bend, Non Anti-Cocking, Limited Run

WR-03 Waveguide, WR-03 Band, 0.75" Bend Radius
SKU:SWB-03090-HB-NAC
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWB-03090-HB as an alternative solution. Read more about Limited Run Products here.

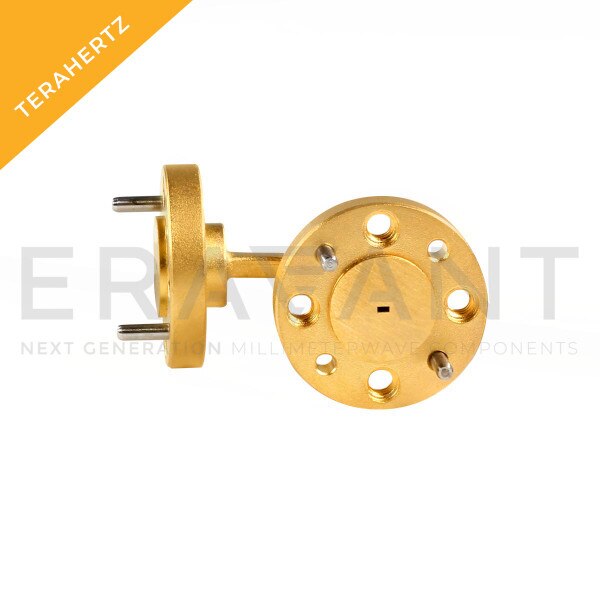

SWB-03090-HB-NAC is a 90 degree, WR-03 H-plane waveguide bend with UG-387/U-M circular flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 325 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $408.00
25 - 49 $367.20
50 - 99 $330.48

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency325 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-03
