Coaxial DC Block, Limited Run

SMA, 5 MHz to 18 GHz
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCB-050-3F3M-U2 as an alternative solution. Read more about Limited Run Products here.

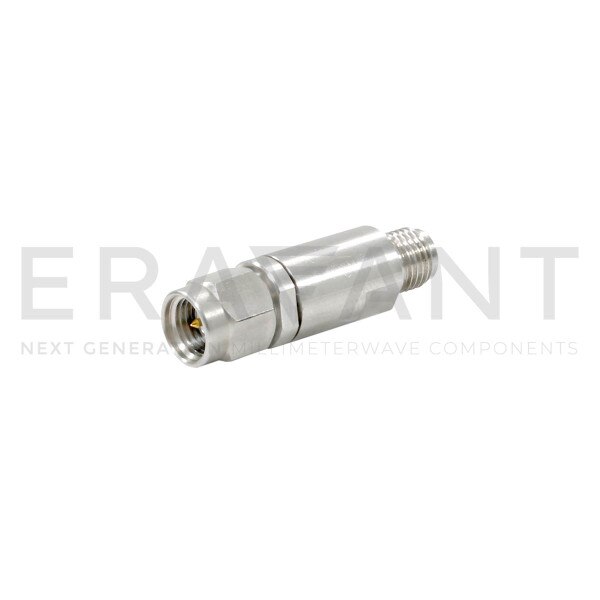

SCB-050-SFSM-U7 is a super SMA coaxial DC block to operate in the frequency range of 5 MHz to 18 GHz. The typical insertion loss of the coaxial DC block is 0.7 dB and the DC block has a typical return loss of 21 dB and a characteristic impedence of 50 Ohms, respectively. It is manufactured with super SMA male and female connectors for convenient circuit insertion. The breakdown voltage is +50 Volts.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency5 MHz
Maximum Frequency26.5 GHz
Return Loss21 dB
Impedance50 Ohms
Insertion Loss0.7 dB
Connector 1SMA Female
Connector 2SMA Male
