High Performance Coaxial Cable Assembly

DC to 90 GHz, 1.35 mm (M) to 1.35 mm (M), 12" Flexible, Phase Matched
Availability:IN STOCKPlease contact us if you need more units than what is available online.

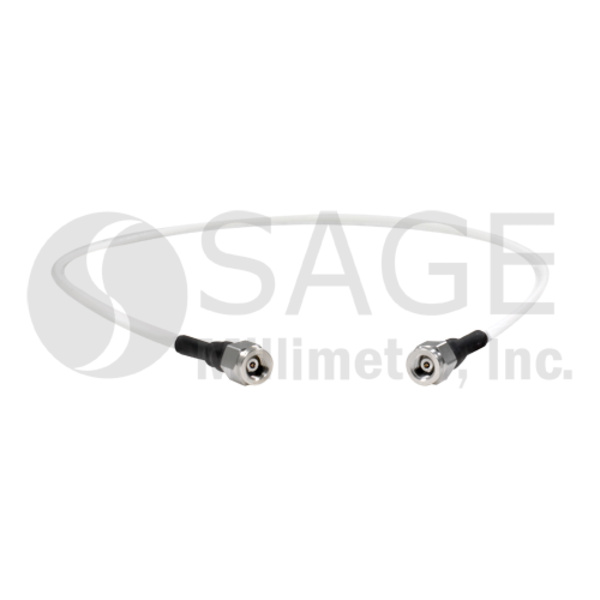

SCW-EMEM012-F1-PM is a 12" long, flexible, phase matched coaxial cable with 1.35 mm (E) male connectors that cover the frequency range of DC to 90 GHz. The coaxial cable utilizes the highest quality test instrumentation grade cable and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency90 GHz
Return Loss14 dB
Impedance50 Ohms
Cable Length12"
Cable TypeFlexible
Cable Outer Diameter0.057"
Minimum Bending Radius0.250"
Connectors1.35 mm Male
