Coaxial Adapter

DC to 90 GHz, 1.35 mm (F) to 1.35 mm (F)
Availability:IN STOCKPlease contact us if you need more units than what is available online.

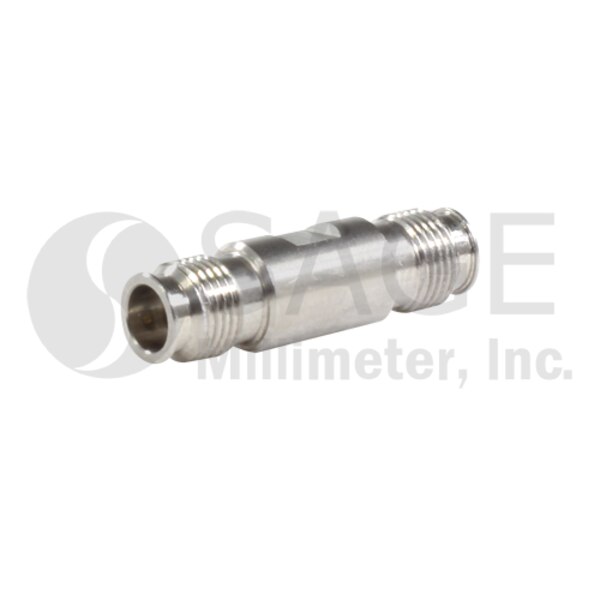

SCT-EFEF-UB is a 1.35 mm female to 1.35 mm female coaxial adapter that covers the frequency range of DC to 90 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 0.7 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $580.00
10 - 24 $522.00
25 - 49 $469.80

Bulk Availability

1 - 5In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency90 GHz
Insertion Loss0.7 dB
Return Loss14 dB
Impedance50 Ohms
Connector 11.35 mm Female
Connector 21.35 mm Female
