Ka-Band Transmitter

DC to 8 GHz IF, 32 to 38 GHz RF, 7.5 to 10 GHz LO

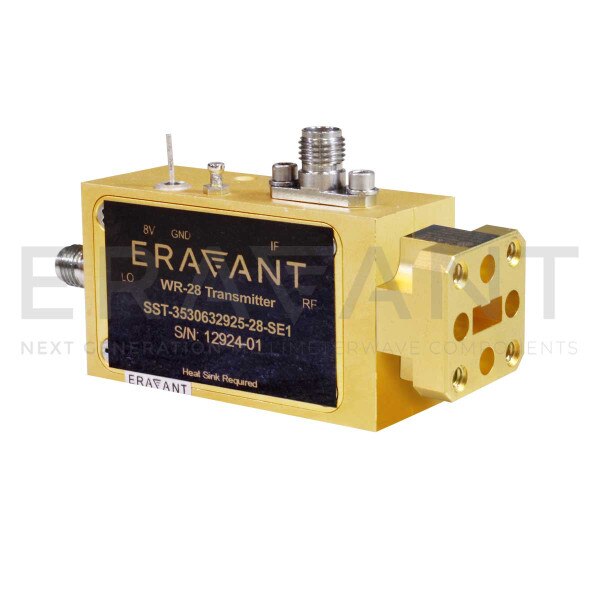

SST-3530632925-28-SE1 is a WR-28 integrated transmitter module for radar and 5G systems. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of 29 dBm in the frequency range of 32 to 38 GHz. The required LO power is +5 dBm between frequencies of 7.5 and 10 GHz. The RF transmit port is a WR-28 Uni-Guide™ Waveguide with UG-599/U Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
ECCN: 3A001.b.4.c
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency32 GHz
RF Output Maximum Frequency38 GHz
P1dB29 dBm
Conversion Gain25 dB
LO Frequency8.75 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-28 Uni-Guide™ WG
