Coaxial Adapter

DC to 65 GHz, SMPM (GPPO) (F) to 1 mm (F)
SKU:SCT-DF1F-UB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

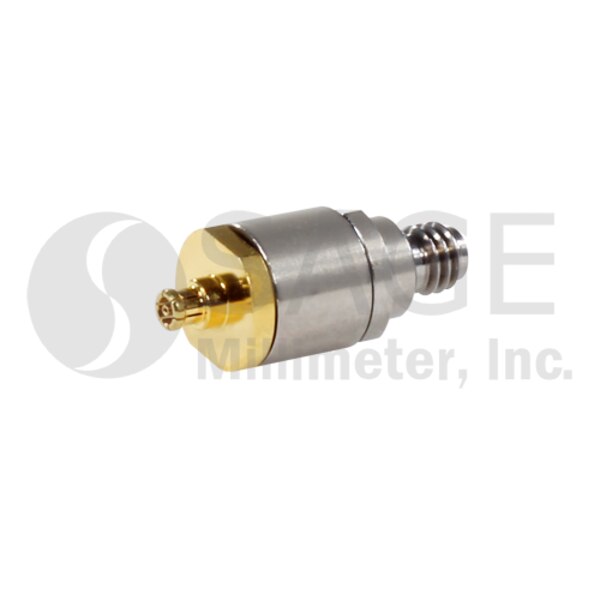

SCT-DF1F-UB is a SMPM (GPPO) female to 1 mm female coaxial adapter that covers the frequency range of DC to 65 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 1.0 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 - 49$486.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency65 GHz
Insertion Loss1.0 dB
Return Loss16 dB
Impedance50 Ohms
Connector 1SMPM Female
Connector 21 mm Female
